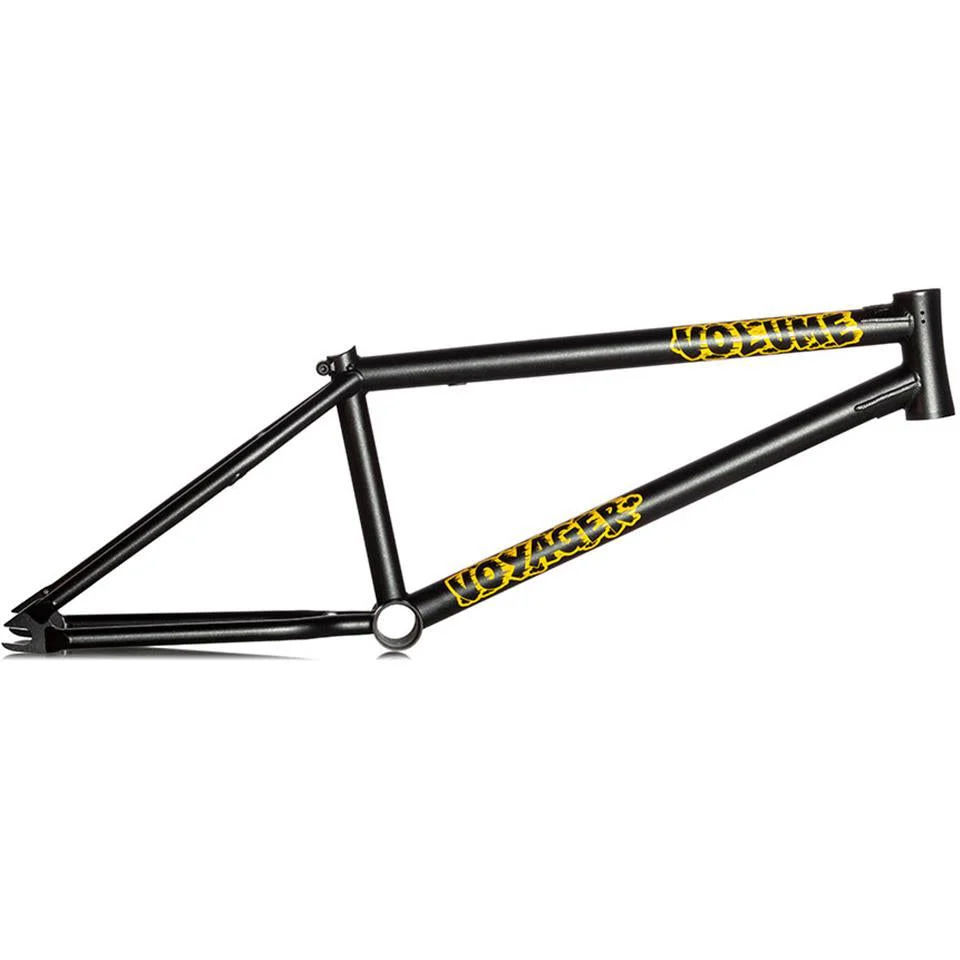

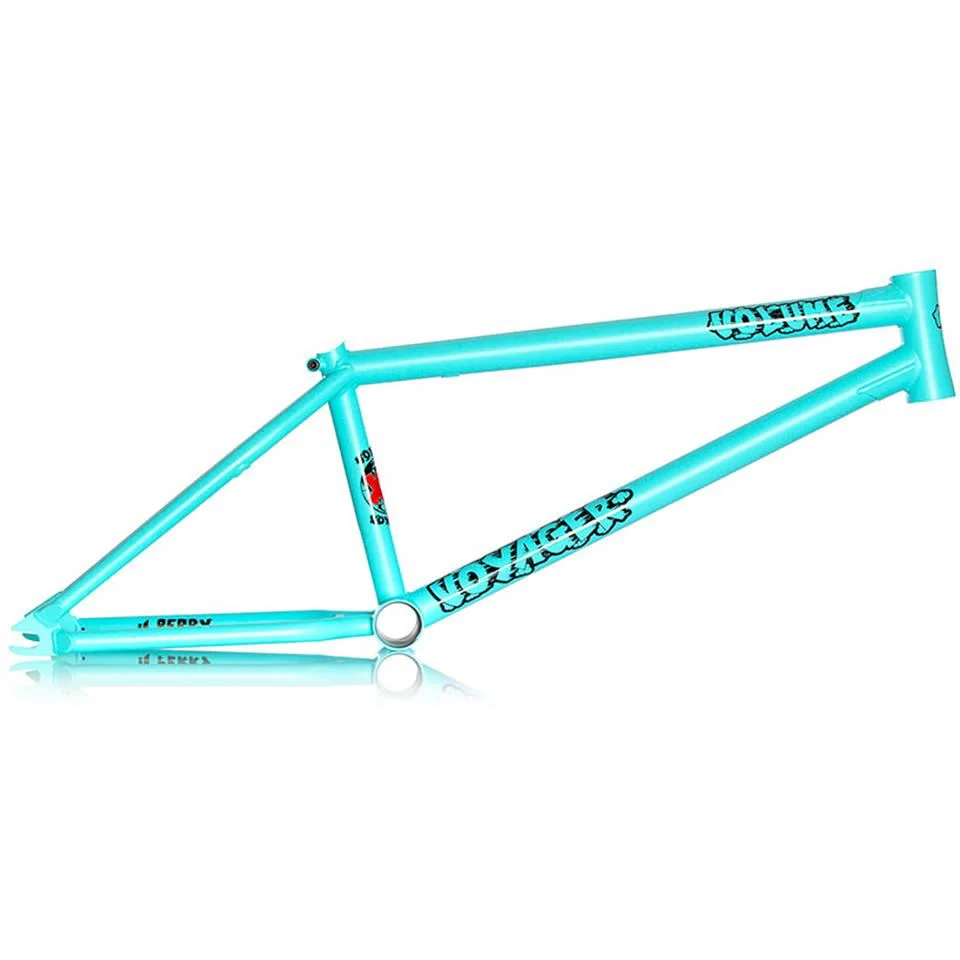

Volume Voyager XL Frame

The Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a steeper 75.25° heat tube, Longer 13" slammed chainstay (13.25" center to center) and a higher 9.25" seat tube height.

This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tyre clearance.

###section###

Product Specs

1. MATERIAL: 100% 4130 CrMo
2. HEAD TUBE ANGLE: 75.25°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.25"
5. BB HEIGHT: 11.7"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9.25"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Intergrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: Removable (Sold separately)
13. WEIGHT: 5.4 lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Great all round frame for all types of riding
• High-quality Chromoly construction
• Strong S-bend chainstays with room for 2.40” tires
• Strong and durable investment cast dropouts
