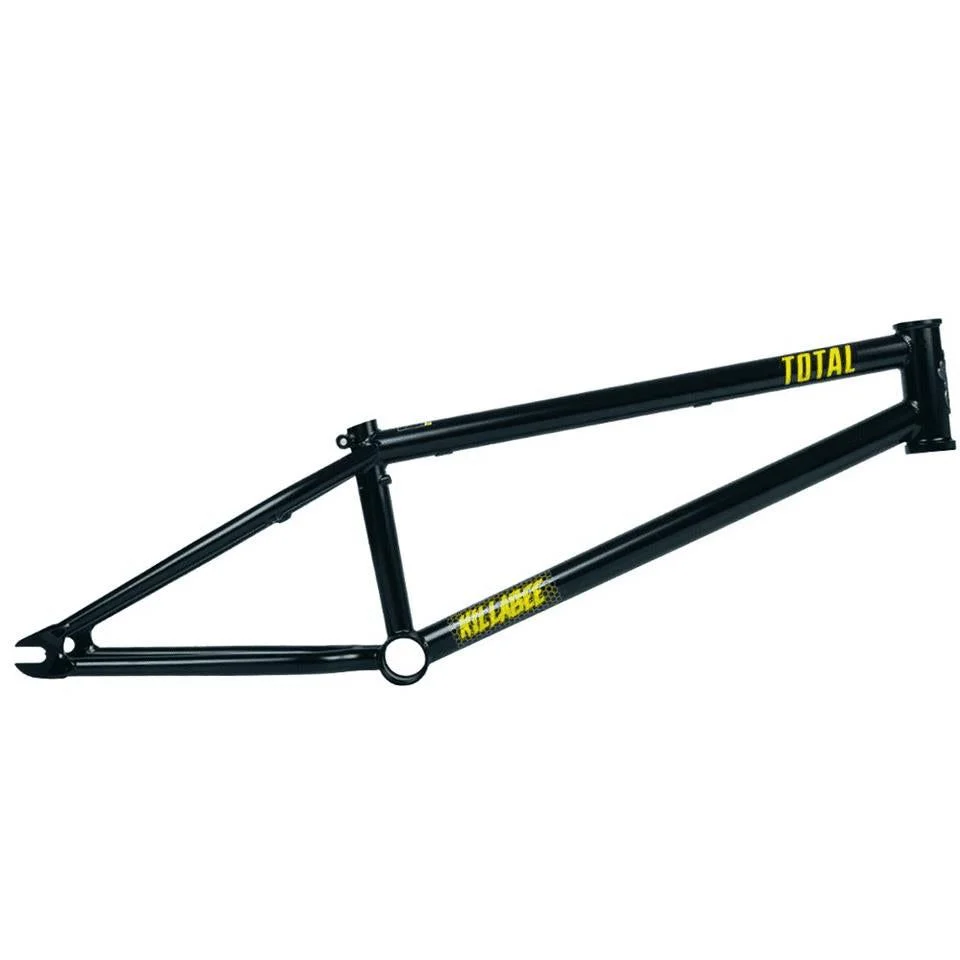

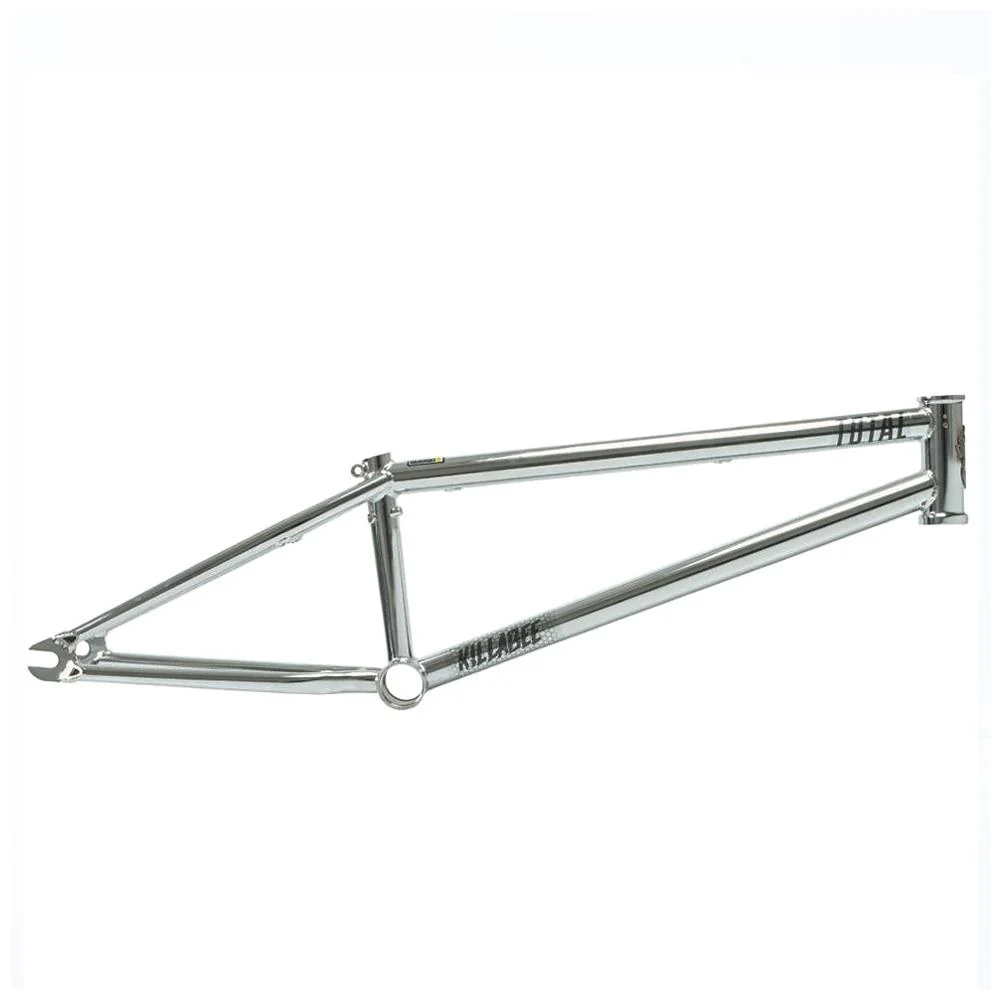

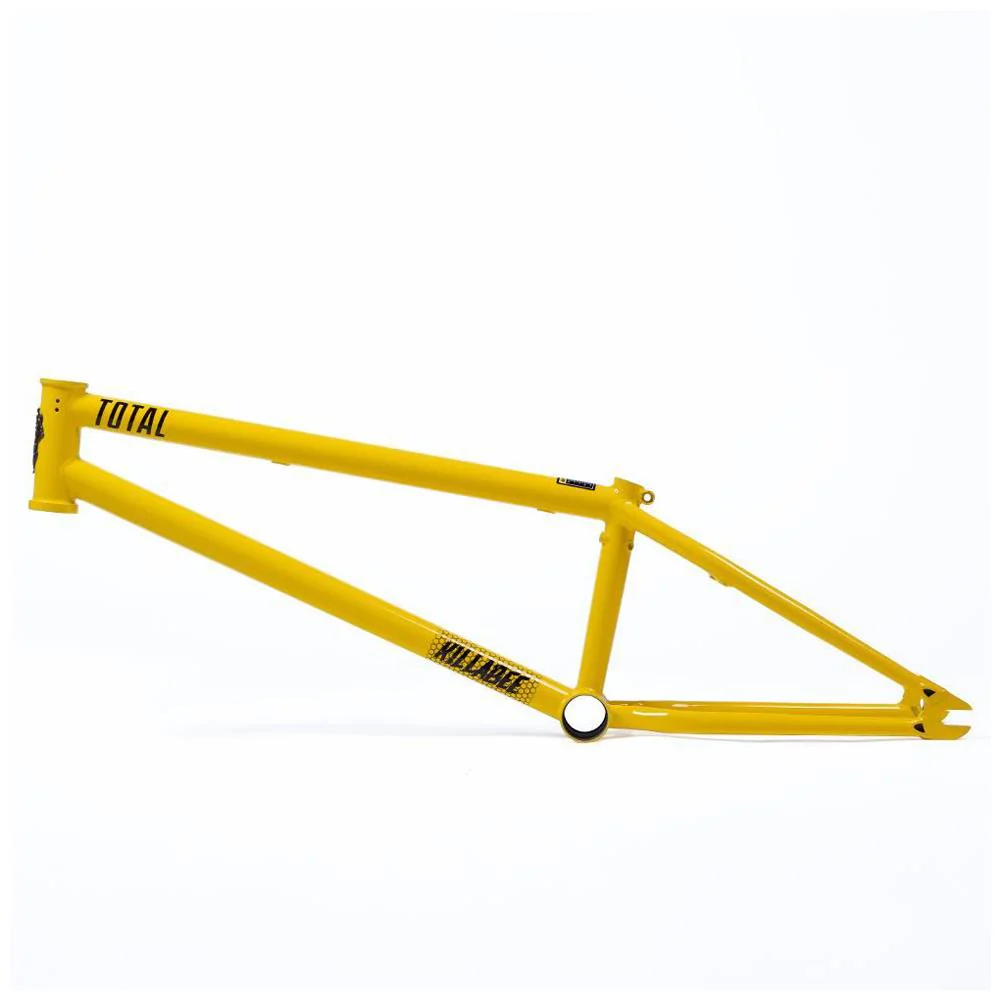

Total BMX Killabee K4 Frame

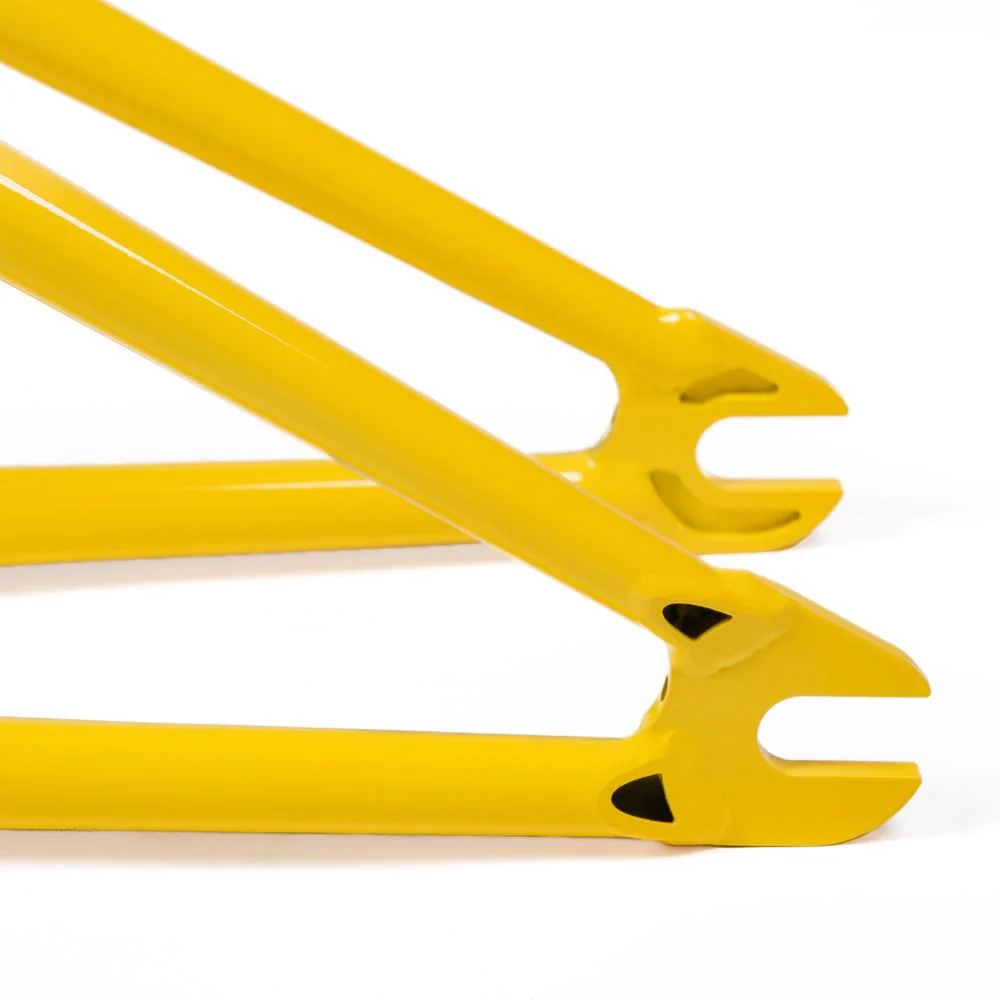

Big freshen up for the Killabee K4! Total have listened and brought back the integrated chain tensioners as well as adding the DBS brake system. Featuring a progressive 75.75° head tube angle this frame is super responsive. Ovalised chain stays have been added to keep tyre clearance suitable for up to 2.4” tyres and for extra dent resisitance. This frame is ready to take your riding to the next level.

###section###

Product Specs

1. MATERIAL: Full Multi Butted Sanko 4130 Chromoly
2. HEAD TUBE ANGLE: 75.75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.65” - 12.95”
5. BB HEIGHT: 11.6"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 7.7"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Removable
13. WEIGHT: 4.10lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Great all round frame for all types of riding
• High-quality Chromoly construction
• Seamless Japanese Sanko Tubing
• Removable brake hardware
