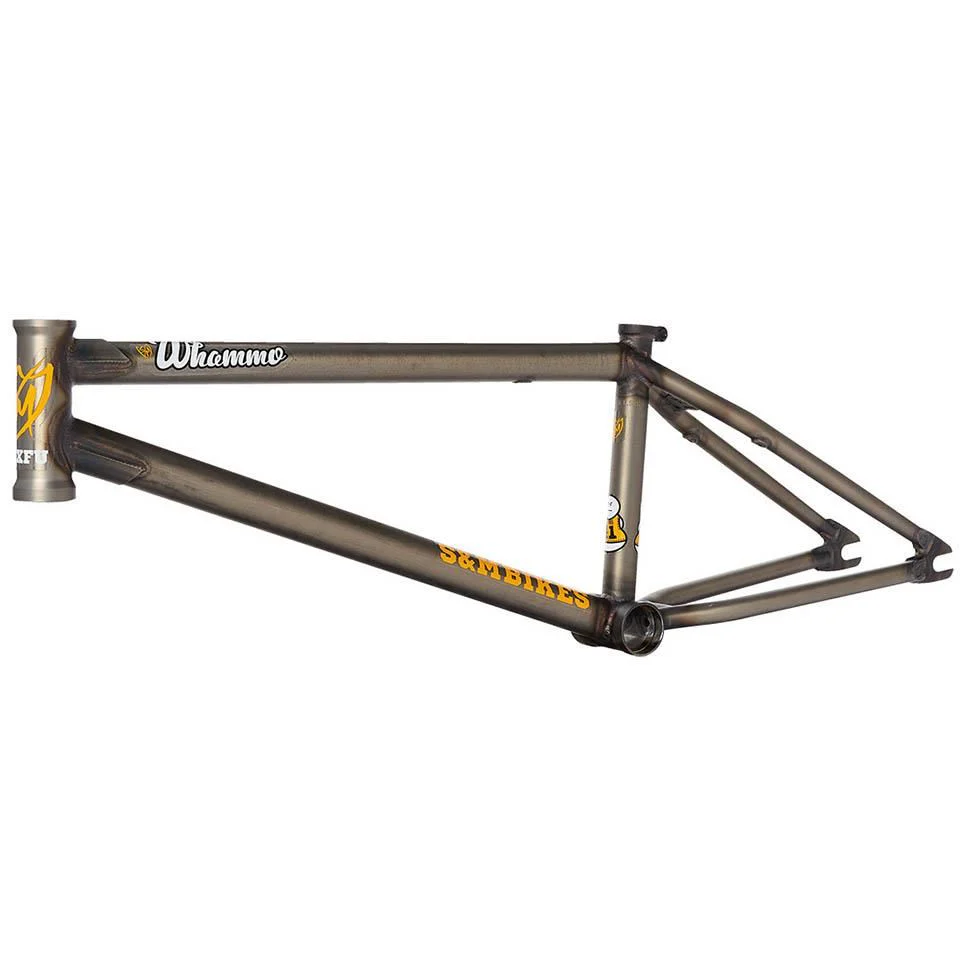

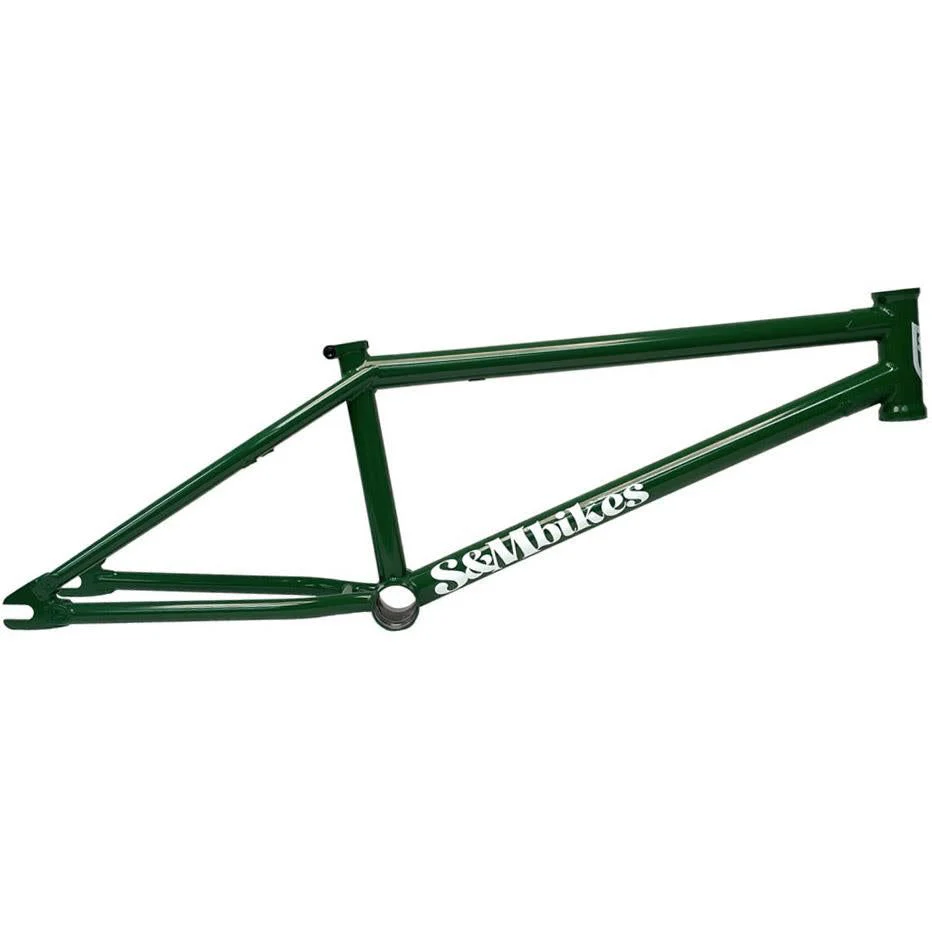

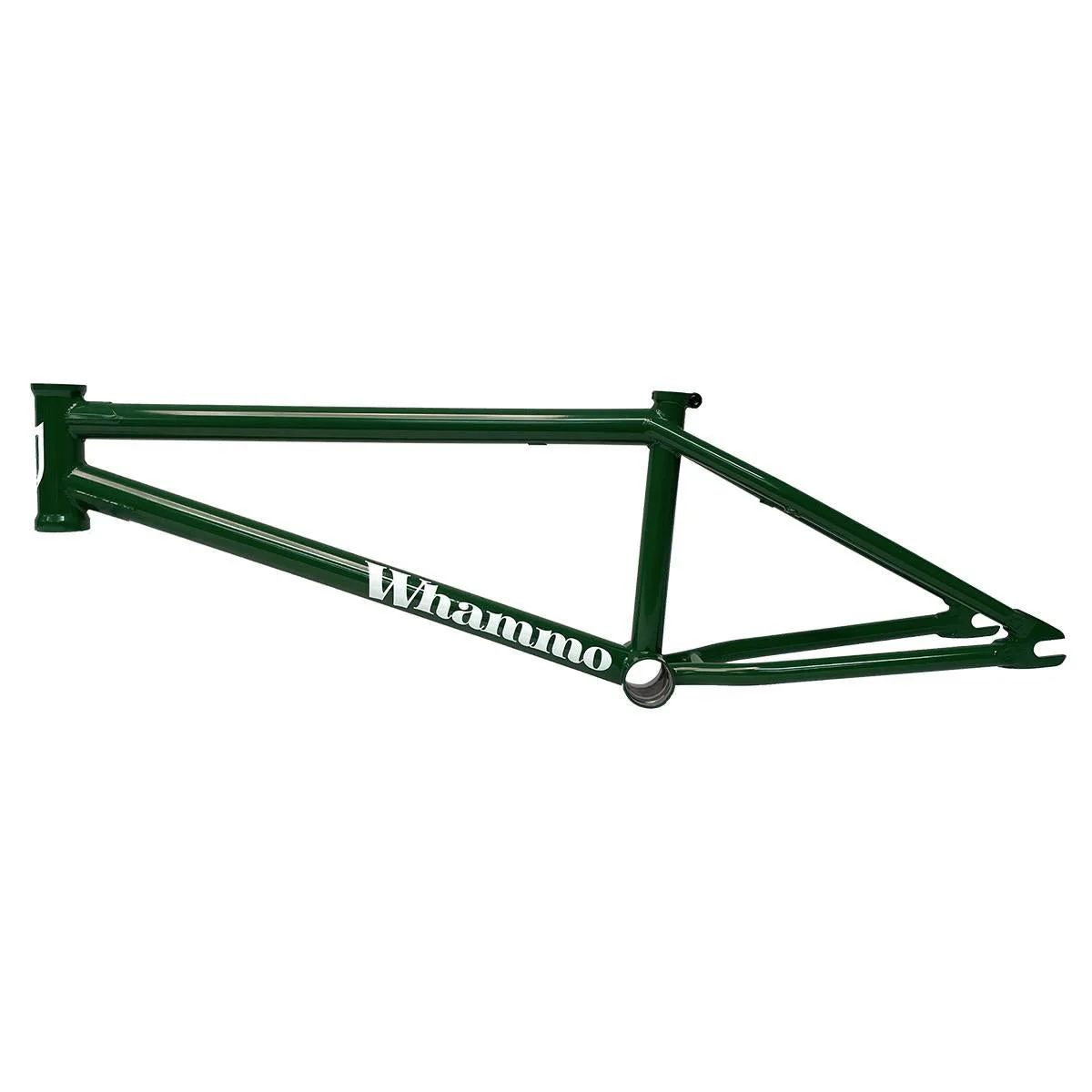

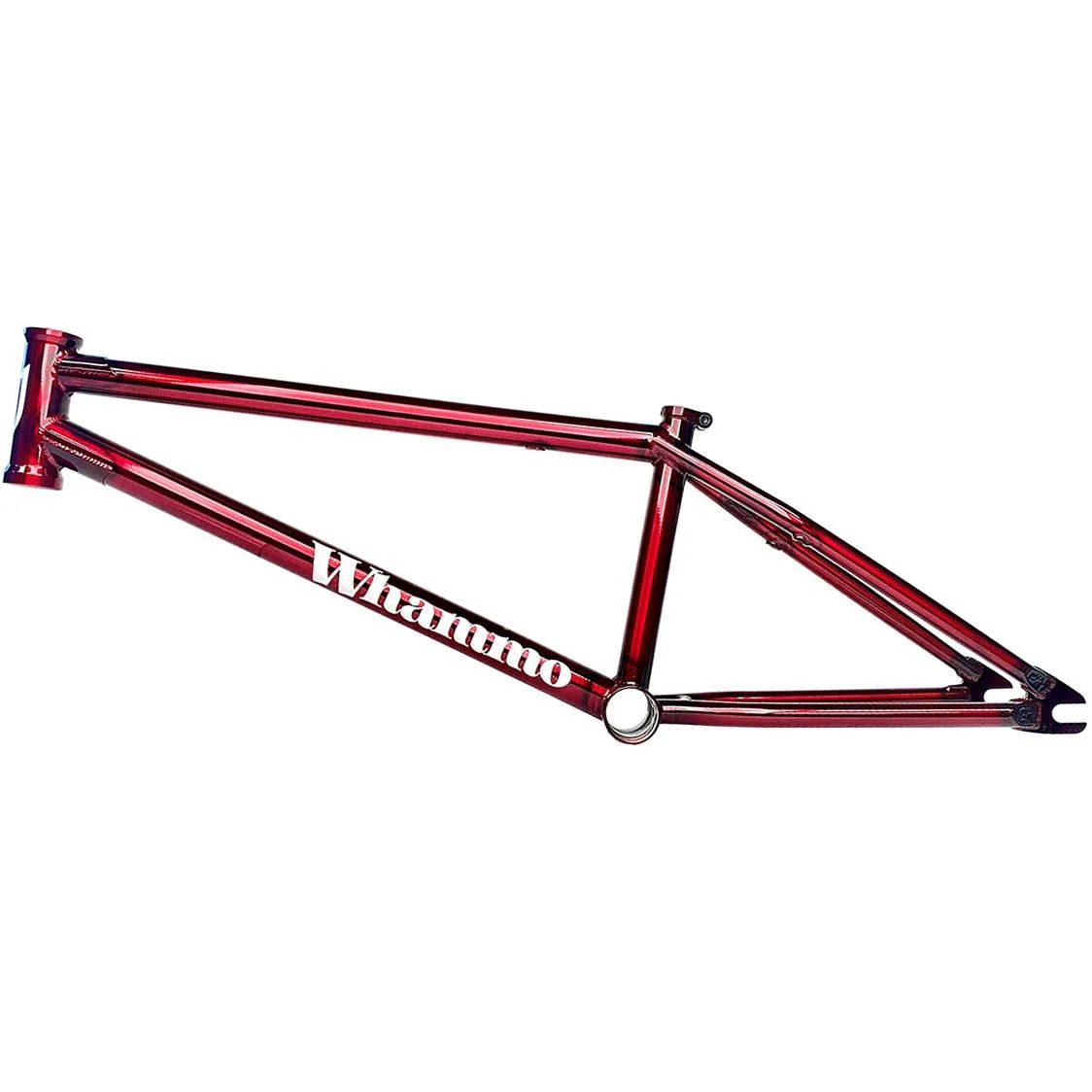

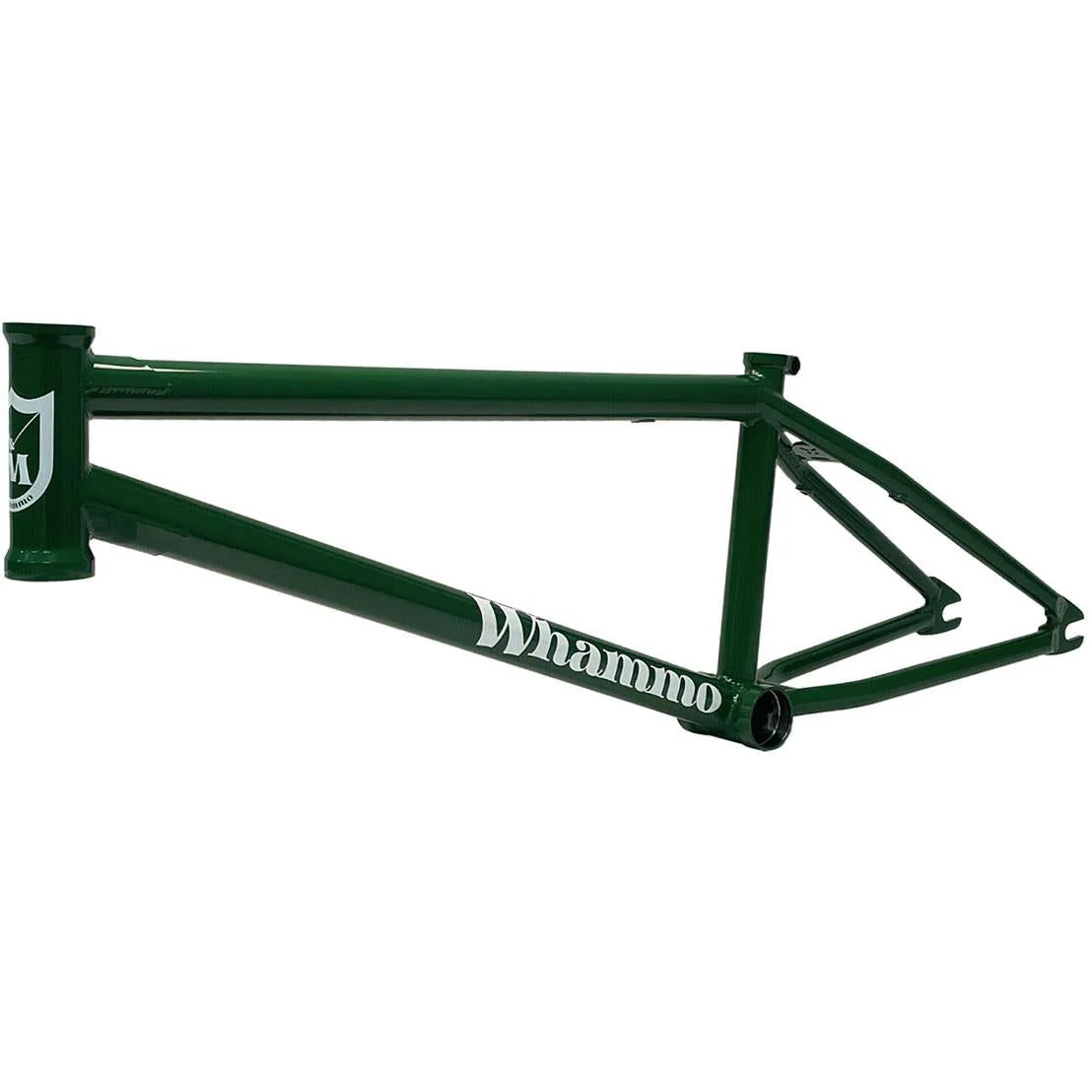

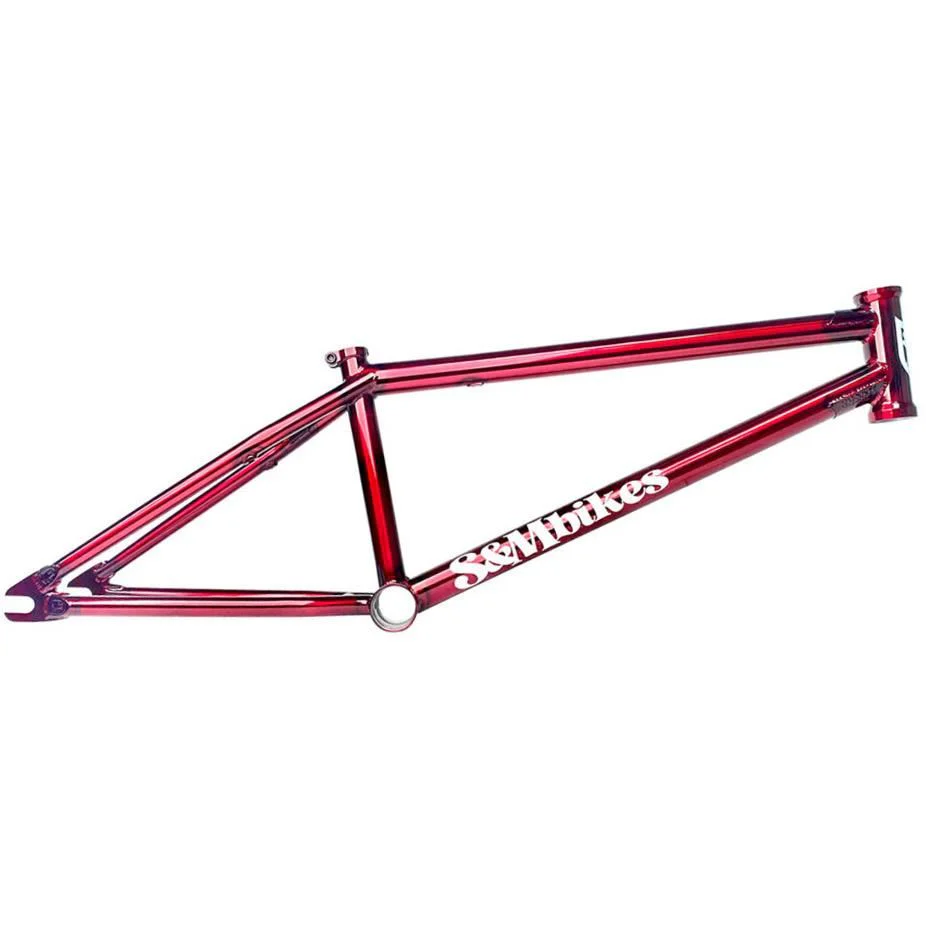

S&M Passero Signature Whammo V2 Frame

With a shorter back end (12.9"), taller headtube (5") and raised bottom bracket (11.8"), the Whammo V.2 will have you shouting Wham Bam, thank you Man! The taller headtube (ie. less spacers) translates into a cleaner setup, the shorter back end makes it more responsive and the higher bottom bracket improves sprocket clearance when grinding. The rest? Tried and true from the first Whammo.

###section###

Product Specs

1. MATERIAL: Chromoly ThermalX Butted Tubing
2. HEAD TUBE ANGLE: 75.3°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.9"-13.5"
5. BB HEIGHT: 11.8"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 8.85"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: NA
13. WEIGHT: 4.65lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Great all round frame for all types of riding
• High-quality Chromoly construction
• Removable brake hardware (Brake hardware not included)
• Strong butted tubing
