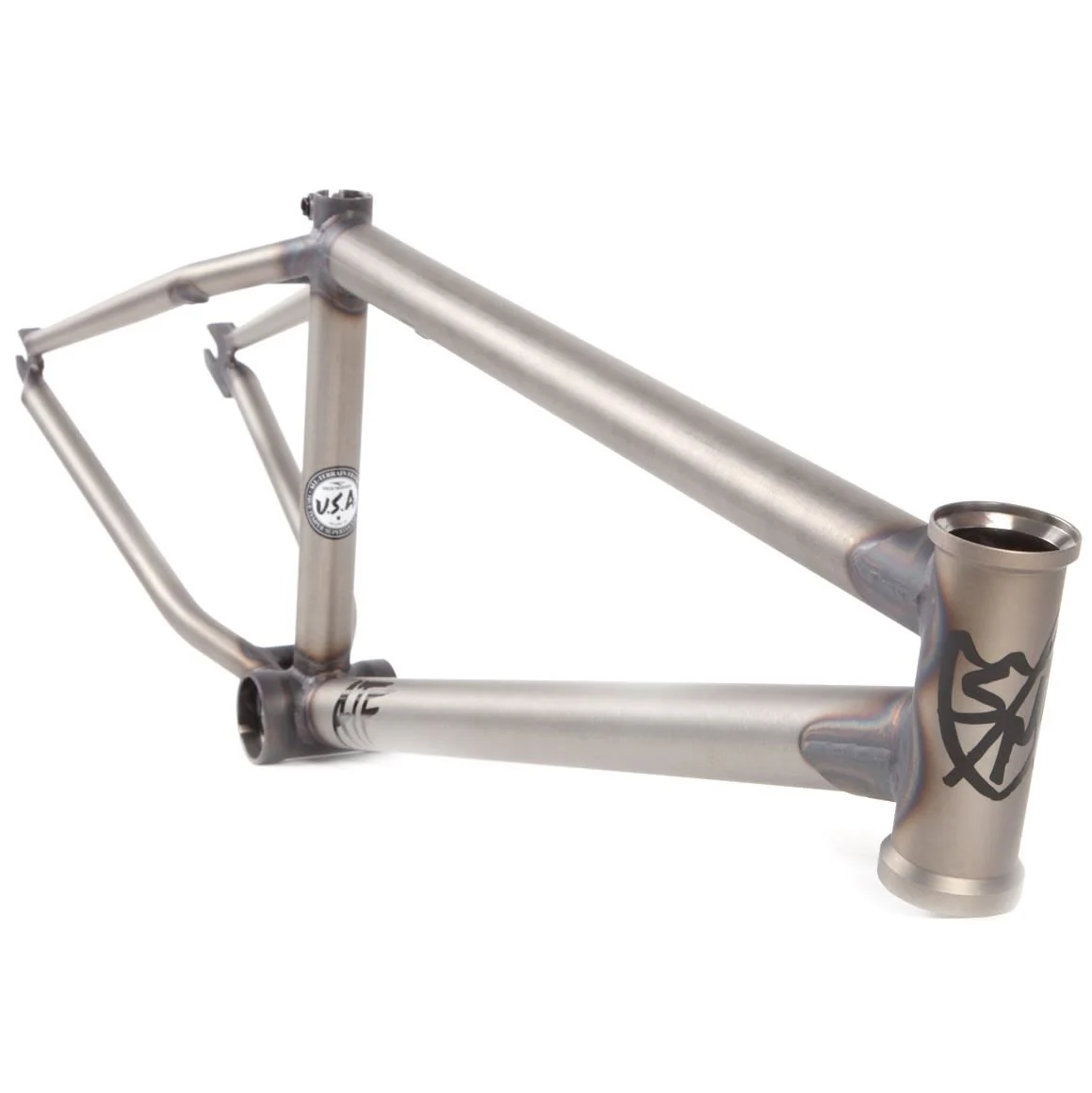

S&M ATF 24" Cruiser Frame

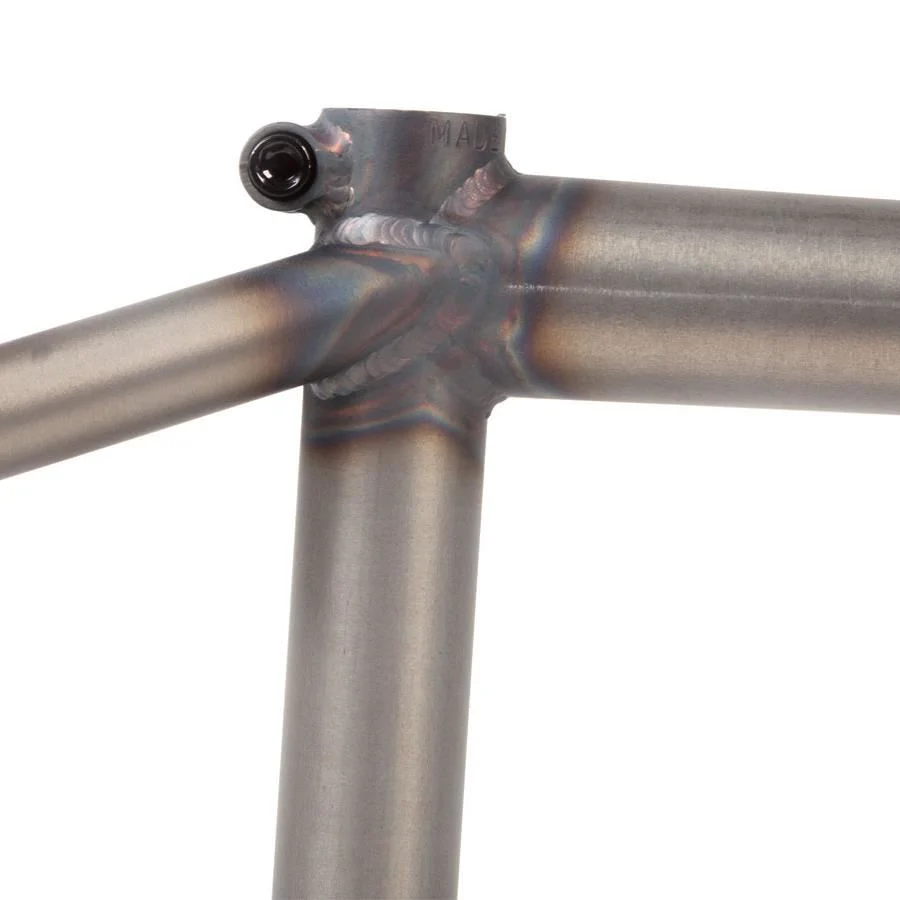

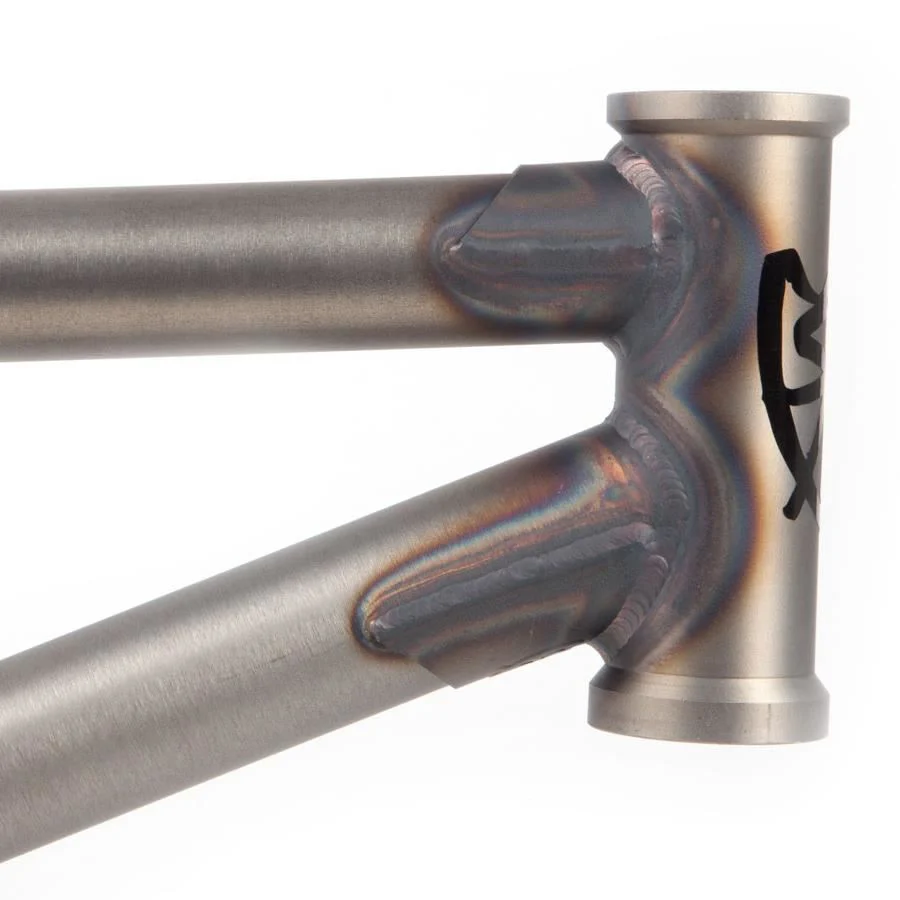

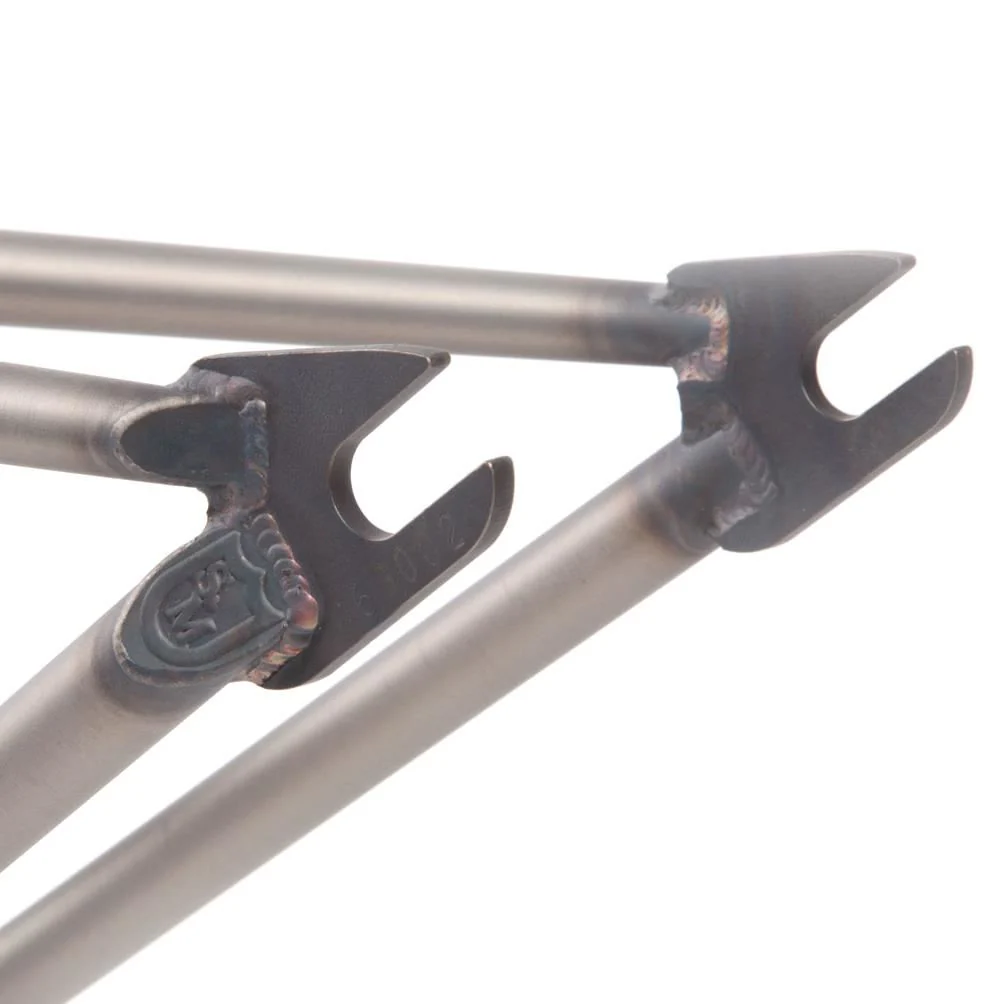

The classic S&M ATF frame now available in a 24" cruiser version. The ATF bmx frame from S&M is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco and firearms) uses S&M's standard heat treated supertherm tube set with a tapered and butted top tube for extra strength, dent resistant down tube, tapered rear stays with massive rear tyre clearance and heat treated micro dropouts.

S&M says the frame is a bit burlier and stronger than most of their frames but still only weights in a 5.54lbs.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 74.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 14.7" - 15.5"
5. BB HEIGHT: 13"
6. WHEEL SIZE: 24"
7. STANDOVER HEIGHT: 9.5"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: None
13. WEIGHT: 5.54lbs (2.5kg)

###section###

Product Highlights

• Neutral Geometry for responsiveness and stability
• Best suited to street and park riding
• High-quality chromoly construction
• Made in the USA
• Removable brake hardware (Brake hardware not included)
