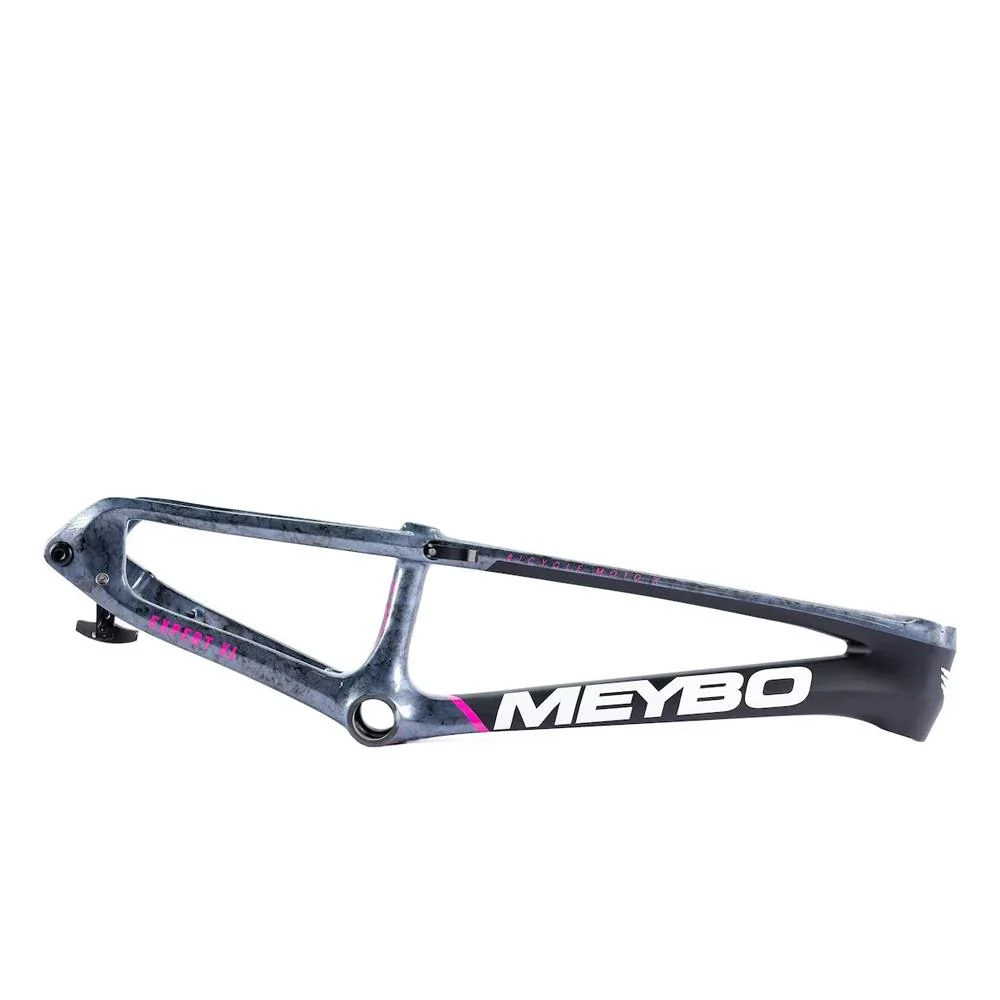

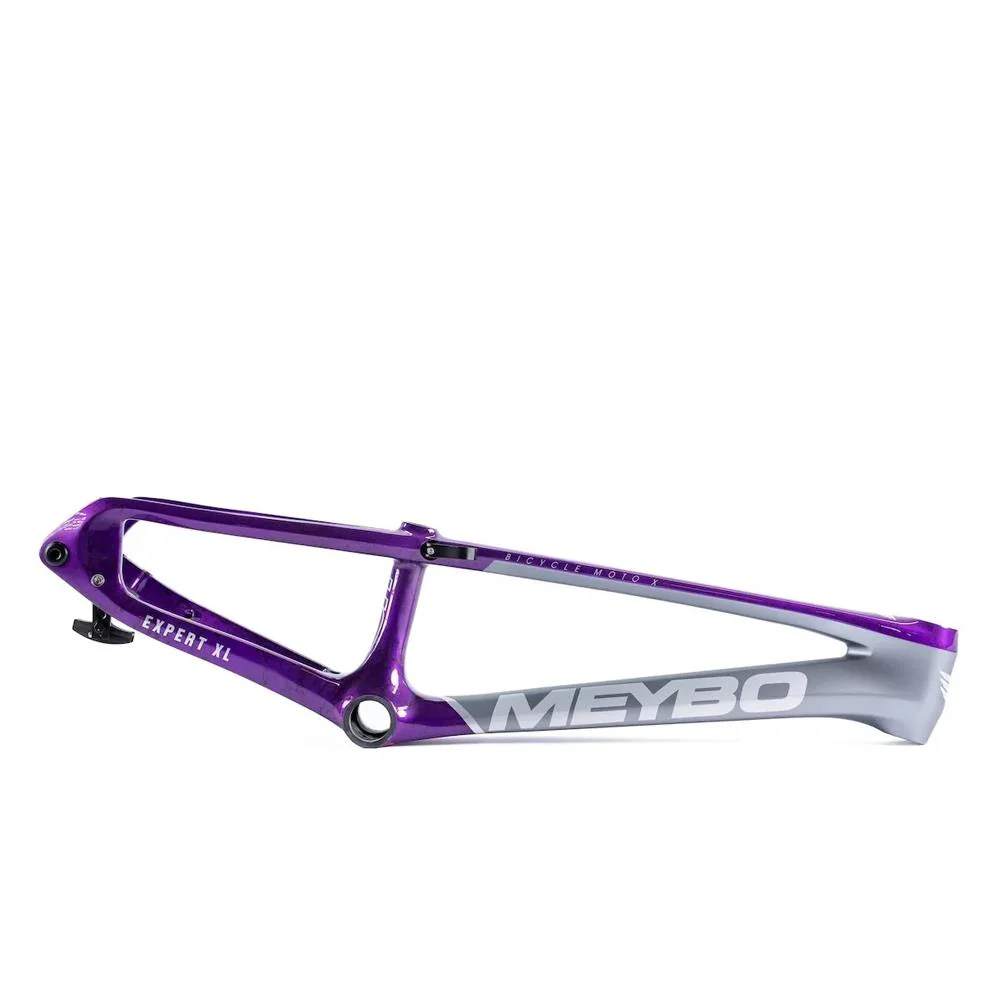

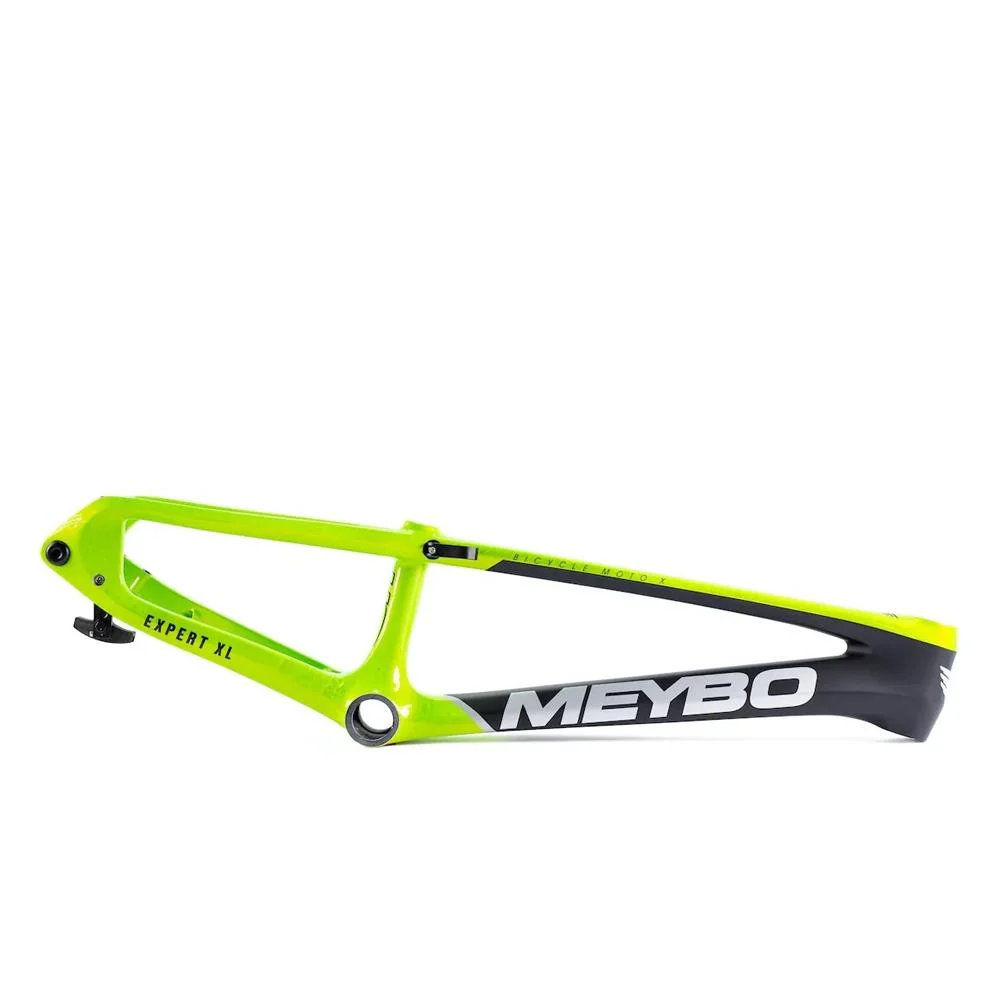

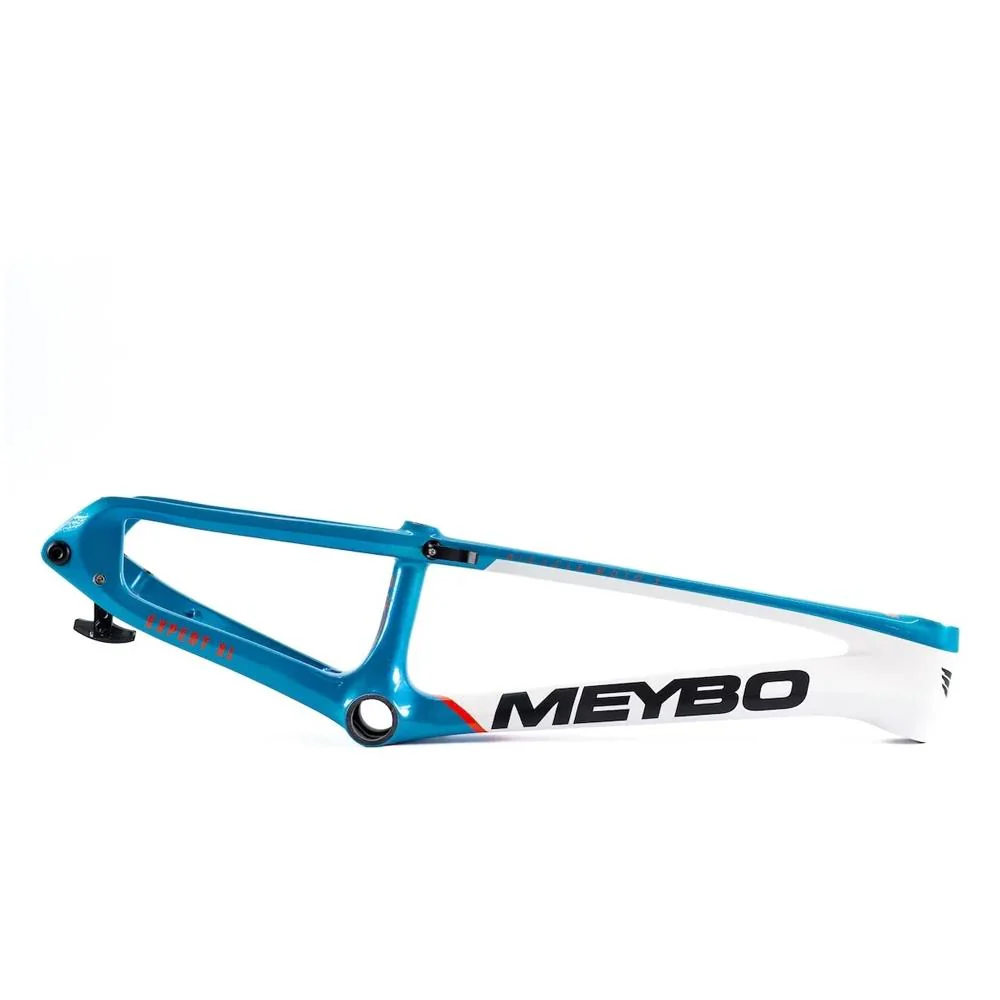

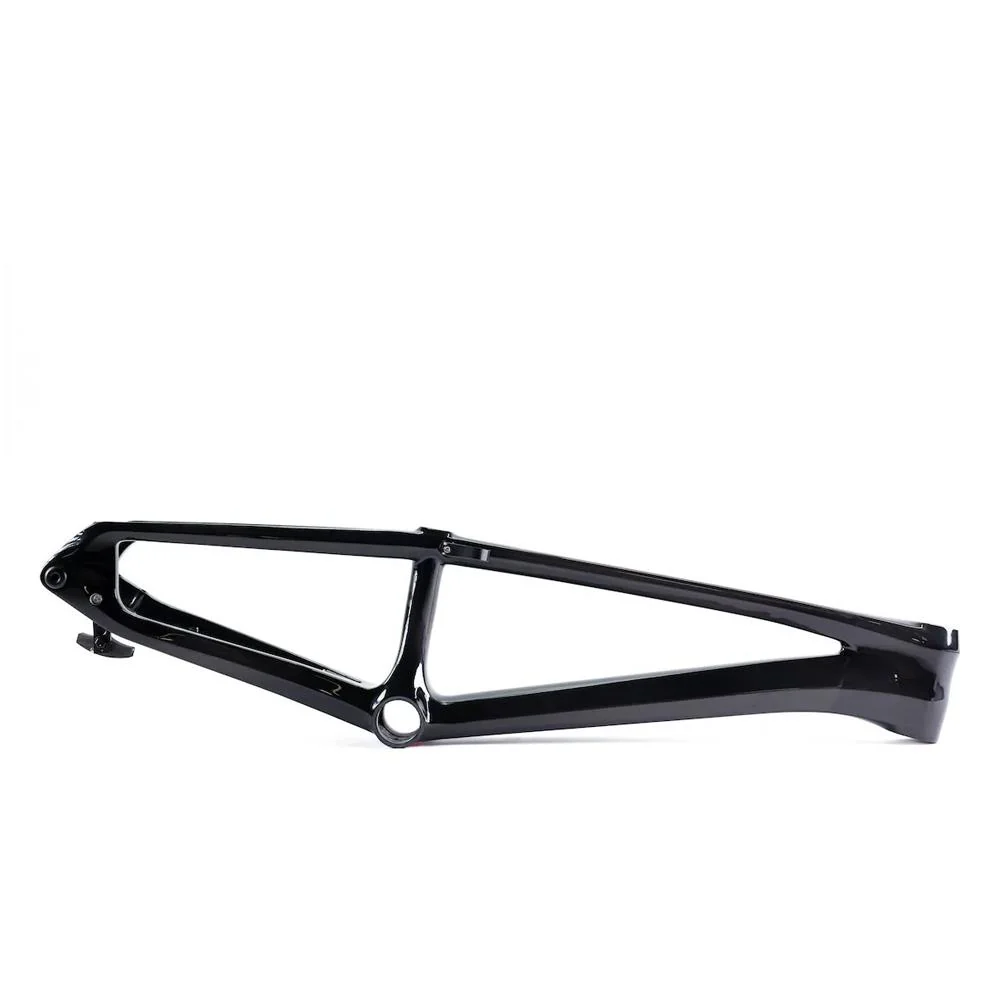

Meybo 2026 HSX Carbon Bmx Race Pro XXXXL Frame

The World Cup-winning Meybo HSX Carbon is the flagship of the Meybo lineup, engineered for elite racers who demand nothing but the best.

With revolutionary frame geometry and cutting-edge carbon construction, the HSX Carbon offers unmatched power transfer, precision handling, and race-proven performance. If you're chasing podiums, the 2026 HSX Carbon is your ultimate tool.

Key features:
UD Carbon Formed Tubes: Premium unidirectional carbon fiber for maximum strength-to-weight ratio.
30% Stiffer Frame: Delivers instant power transfer and acceleration off the gate.
Tapered 1.5” Headtube: Increased front-end stiffness for precision cornering and stability.
Advanced Bottom Bracket Options:
BB86 for sizes Expert and Expert XL
BB386 EVO for sizes Pro 21 and up optimized for stiffness and pedaling efficiency.
Flat Mount Disc Brake System: Modern braking performance with clean aesthetics and reduced weight.
Fixed 15mm Rear Dropouts with Solid Chainstay:
Keeps chainstay length consistent regardless of gearing
Ensures fast, straight rear wheel alignment
Comes with a CNC-machined 7005 aluminum 15mm rear axle
Internal Brake Hose Routing: Clean, aerodynamic cable management.
Meybo Chain Tensioner System: Ensures precise chain setup and alignment.
Integrated Seat Clamp System: Sleek design and reduced overall frame weight.
Derailleur-Ready: Versatile for geared setups.
Compatible with Oversize (OS) Wheels

###section###

Product Specs

1. MATERIAL: Carbon
2. TOP TUBE LENGTH: 22.95"
3. HEAD TUBE ANGLE: 74.3°
4. SEAT TUBE ANGLE: 71°
5. CHAIN STAY LENGTH: 15.62"
6. BB HEIGHT:
7. WHEEL SIZE: 20"
8. STANDOVER HEIGHT:
9. DROPOUT SIZE: 15mm
10. HEADSET TYPE: Tapered Integrated
11. BB TYPE: BB386
12. SEAT TUBE DIAMETER:
13. BRAKE MOUNTS: Welded
14. WEIGHT: 3.19lbs (1446g)

###section###

Product Highlights

• BMX Racing specific geometry
• Race specific frame
• Strong and lightweight carbon construction
• Integrated chain tensioners
• Disc brake mounts
