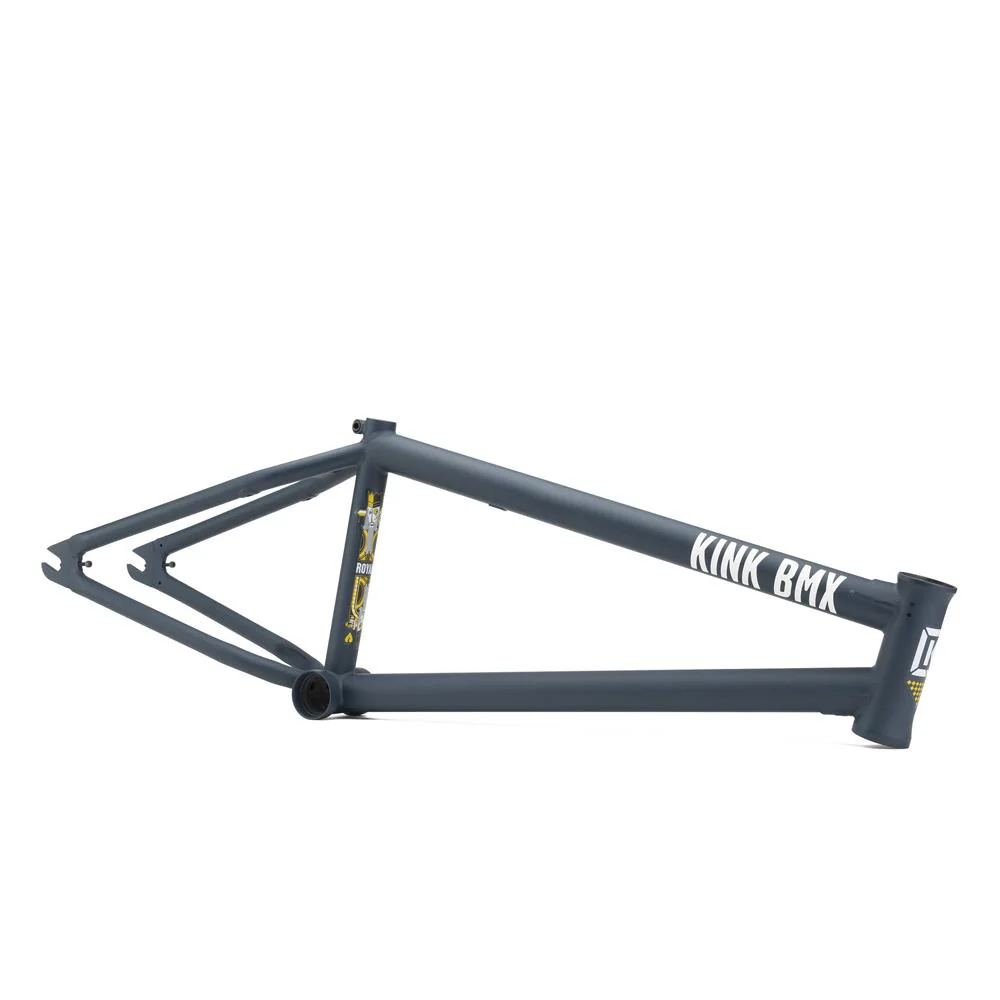

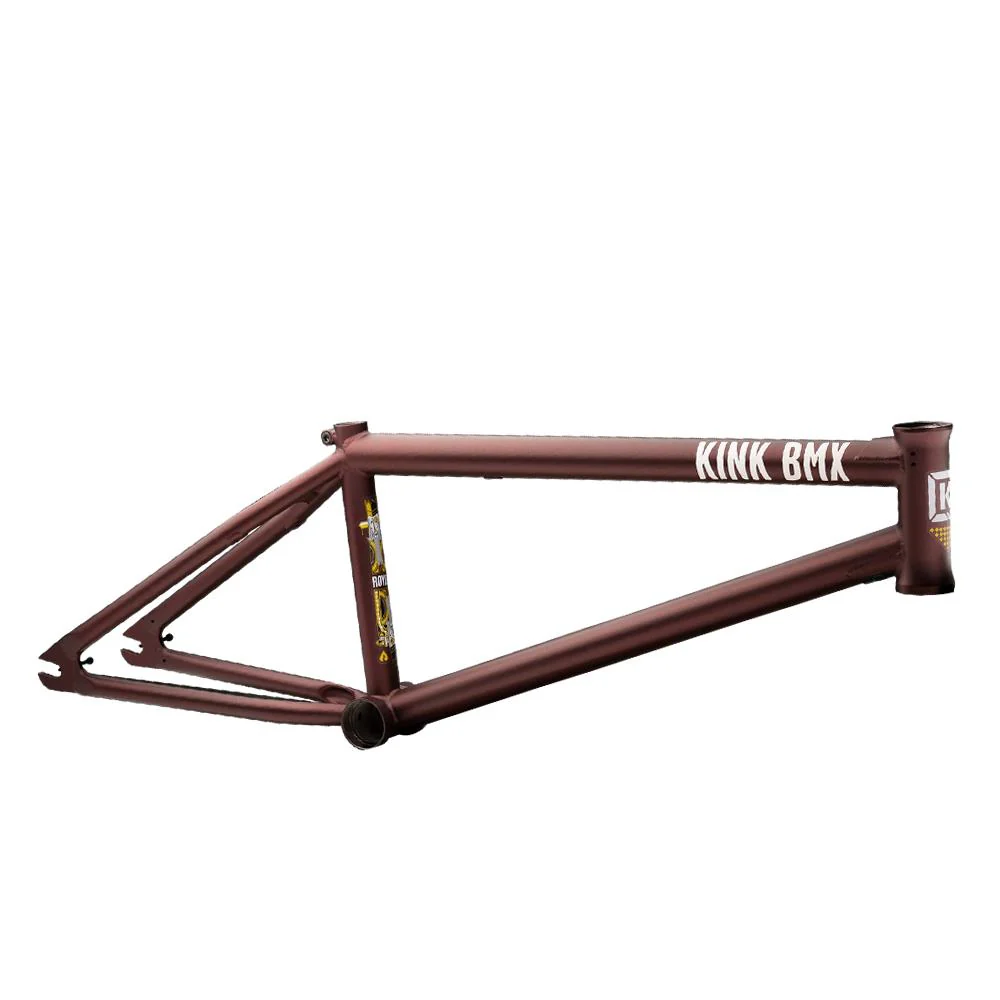

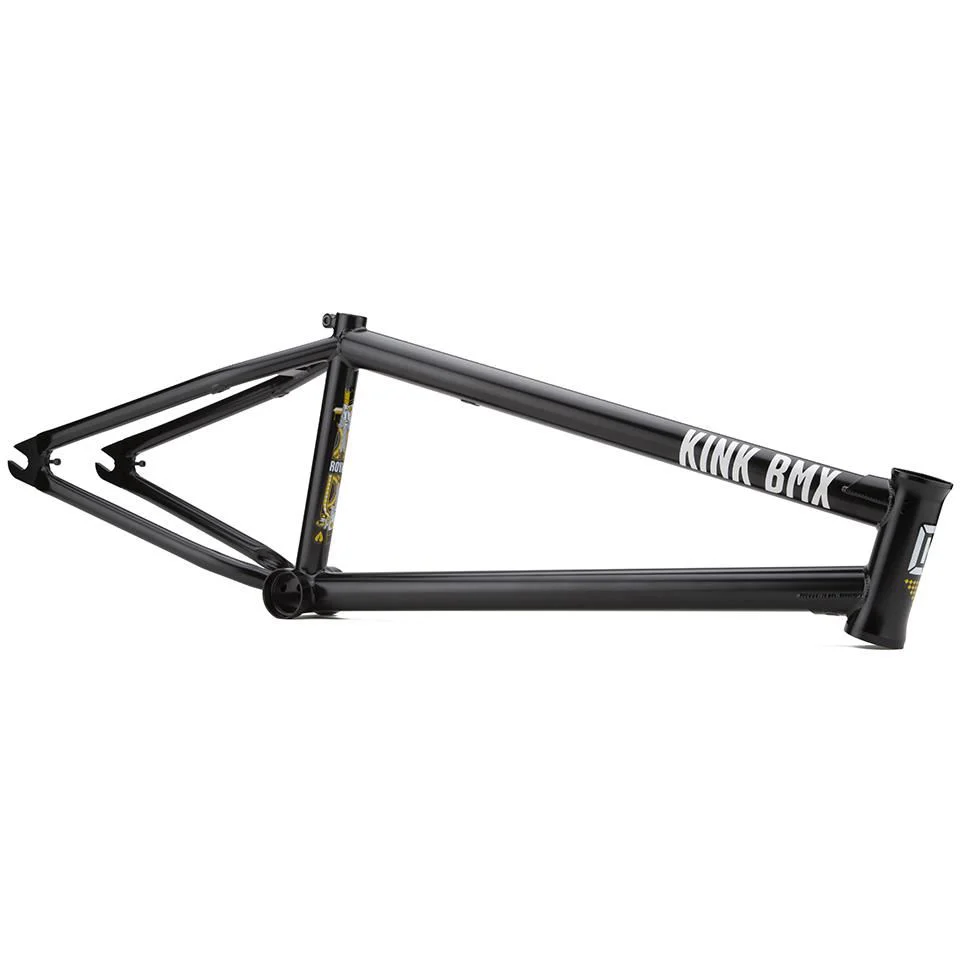

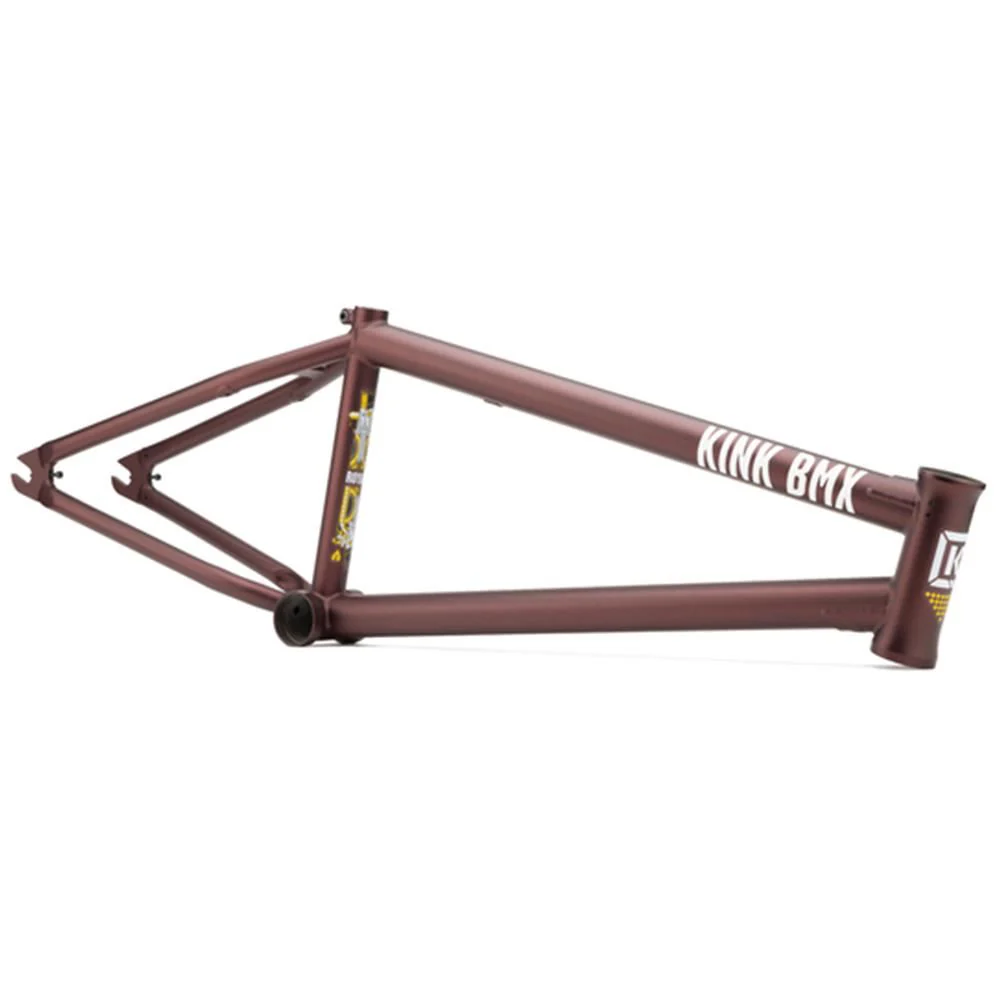

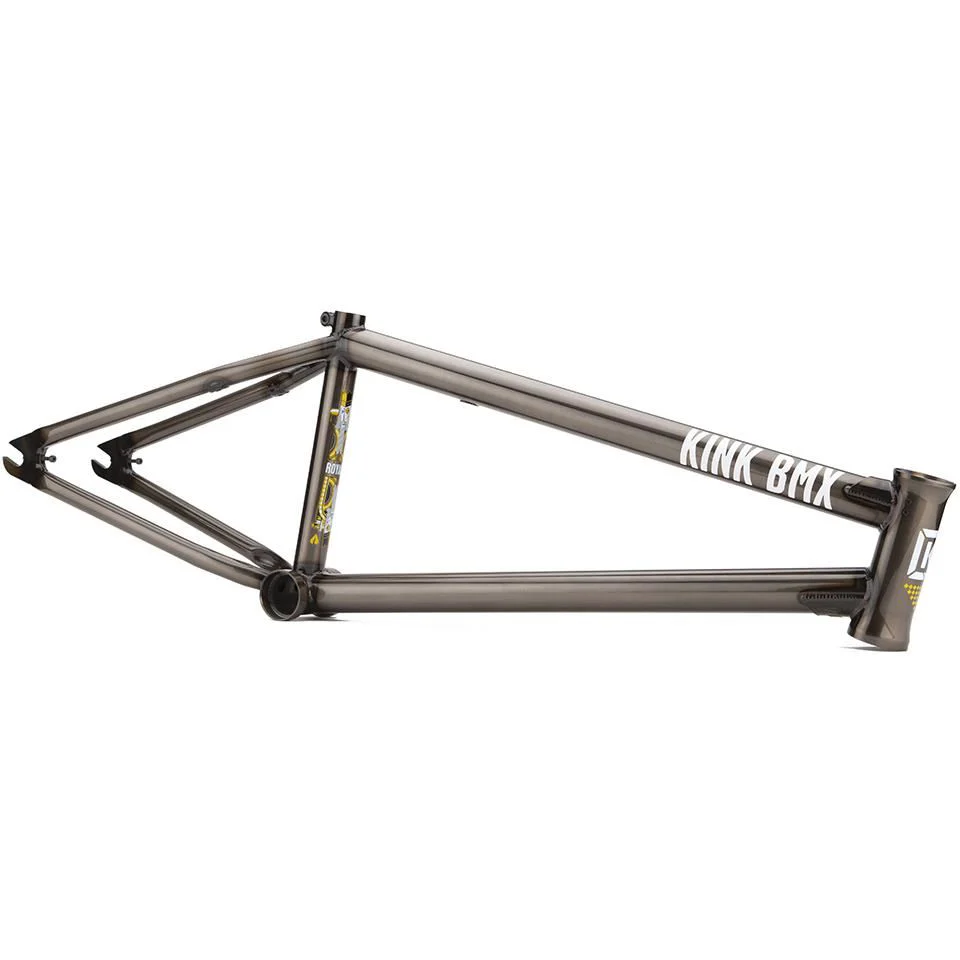

Kink Royale Frame

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76° headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding.

100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay.

This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake mount lugs for those looking to install brakes.

###section###

Product Specs

1. MATERIAL: 100% 4130 Chromoly Tubing
2. HEAD TUBE ANGLE: 76°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.5” Slammed
5. BB HEIGHT: 11.7”
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9”
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated Campy Spec
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Removable
13. WEIGHT: 5.4lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Built in chain tensioners
• Integrated seat post clamp
