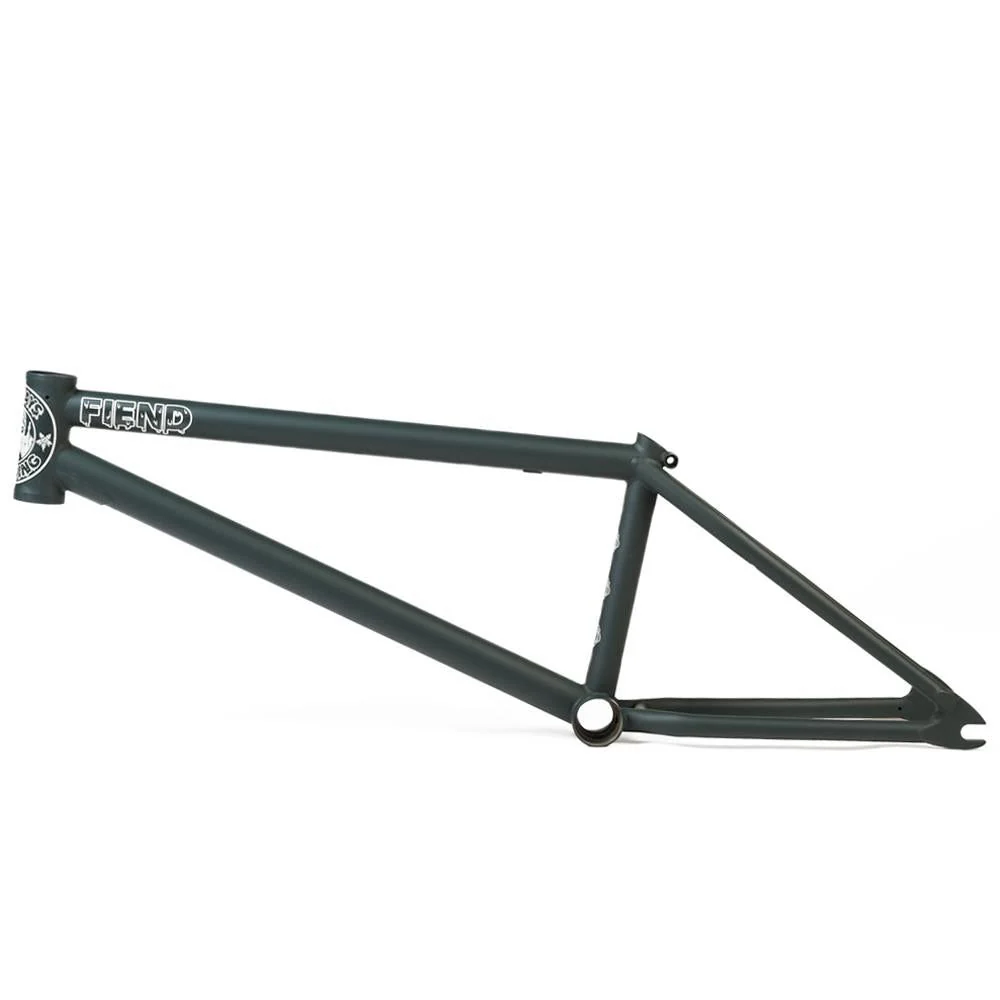

Fiend Reynolds V3 Frame

Designed by Garrett and constructed with 100% 4130 chromoly throughout.

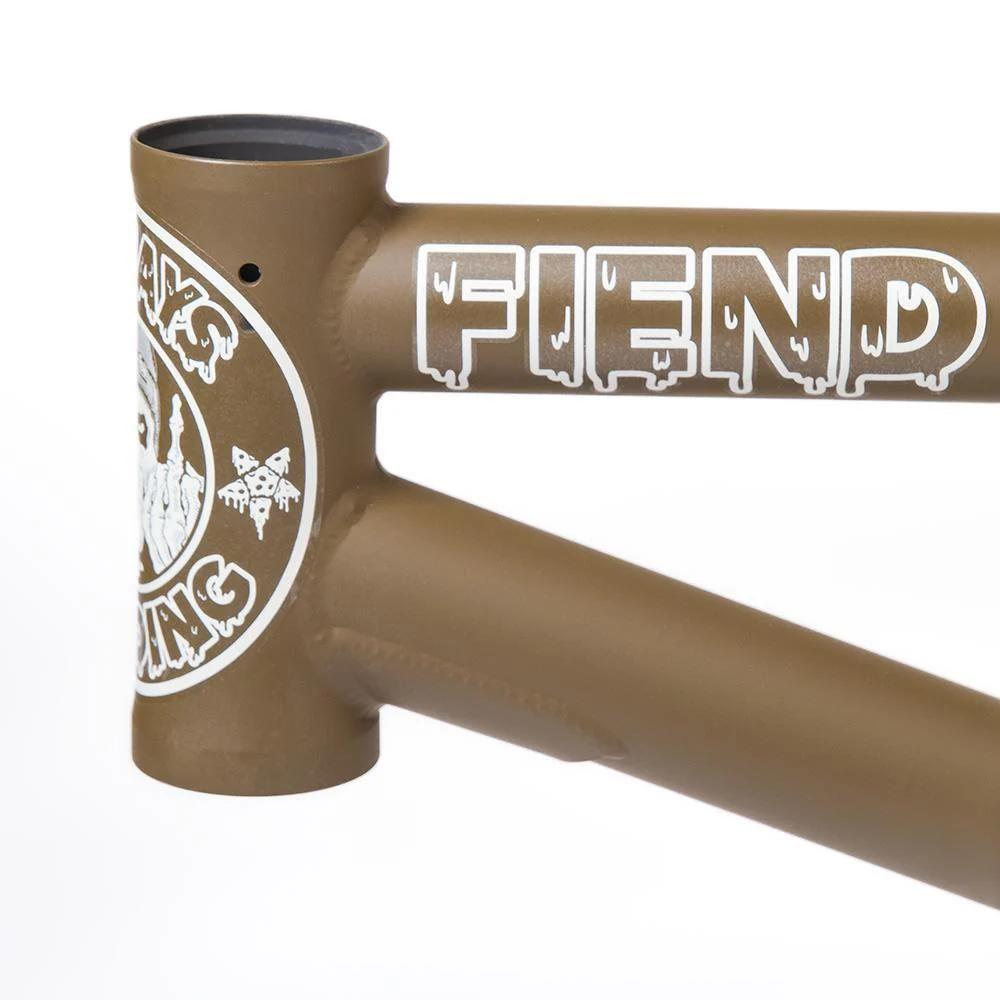

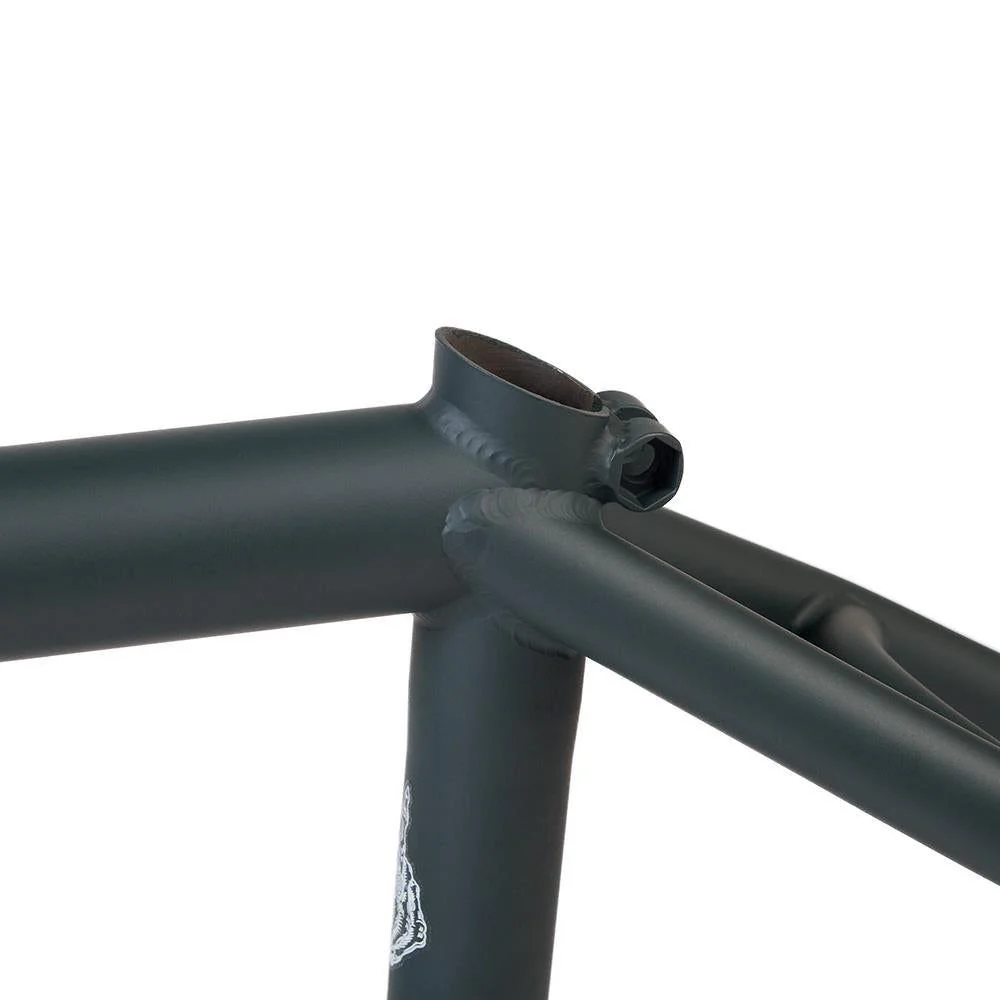

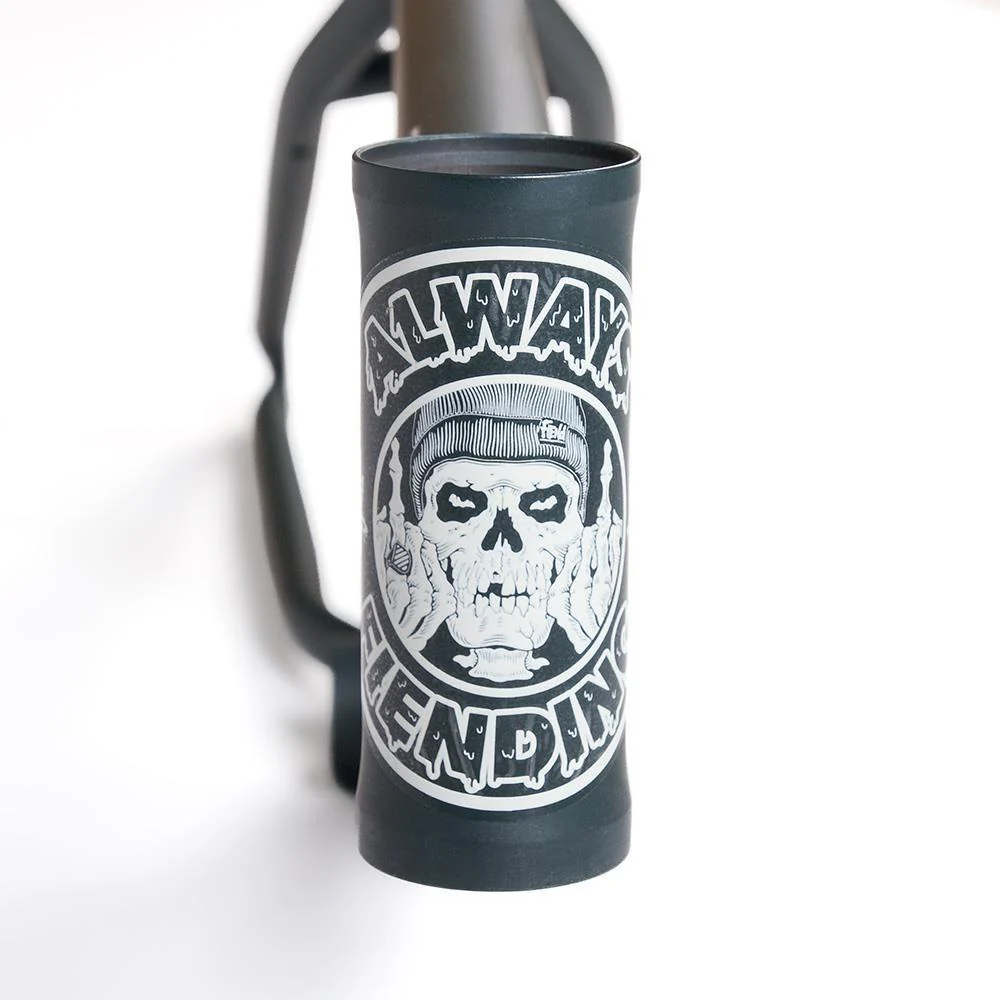

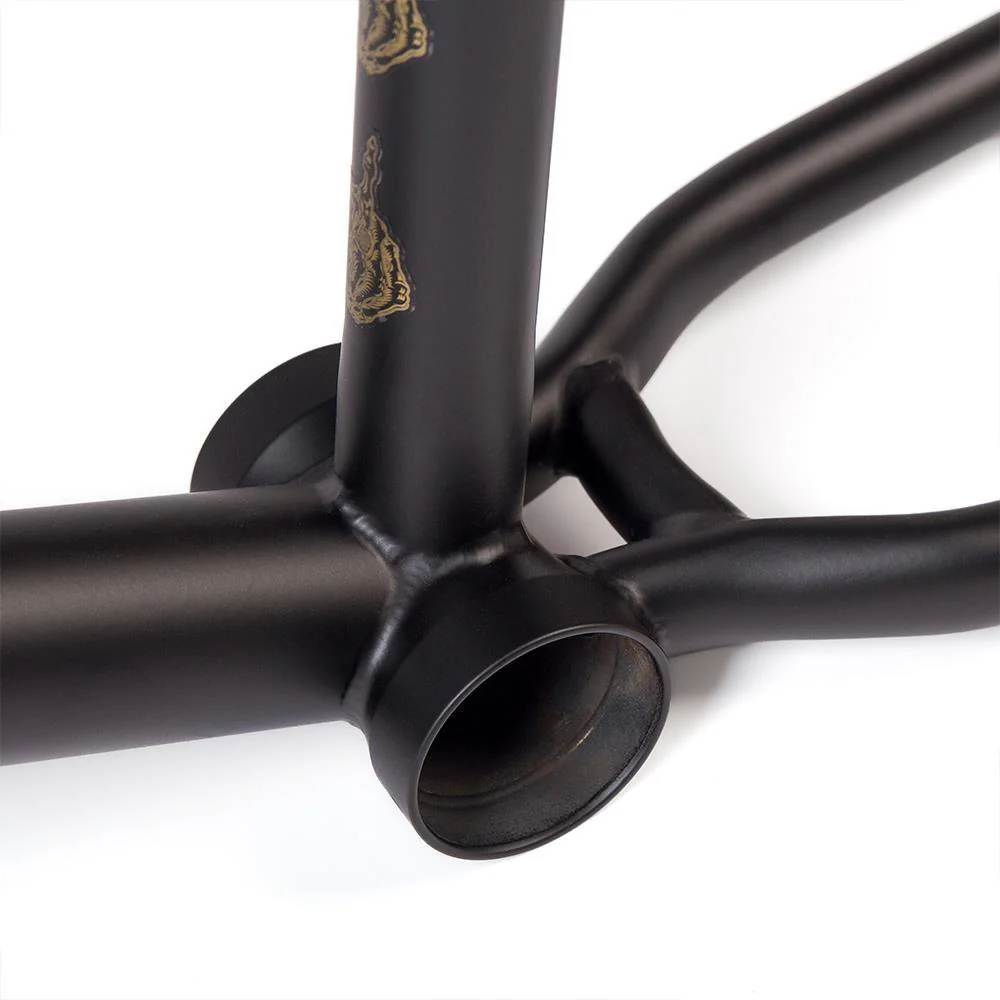

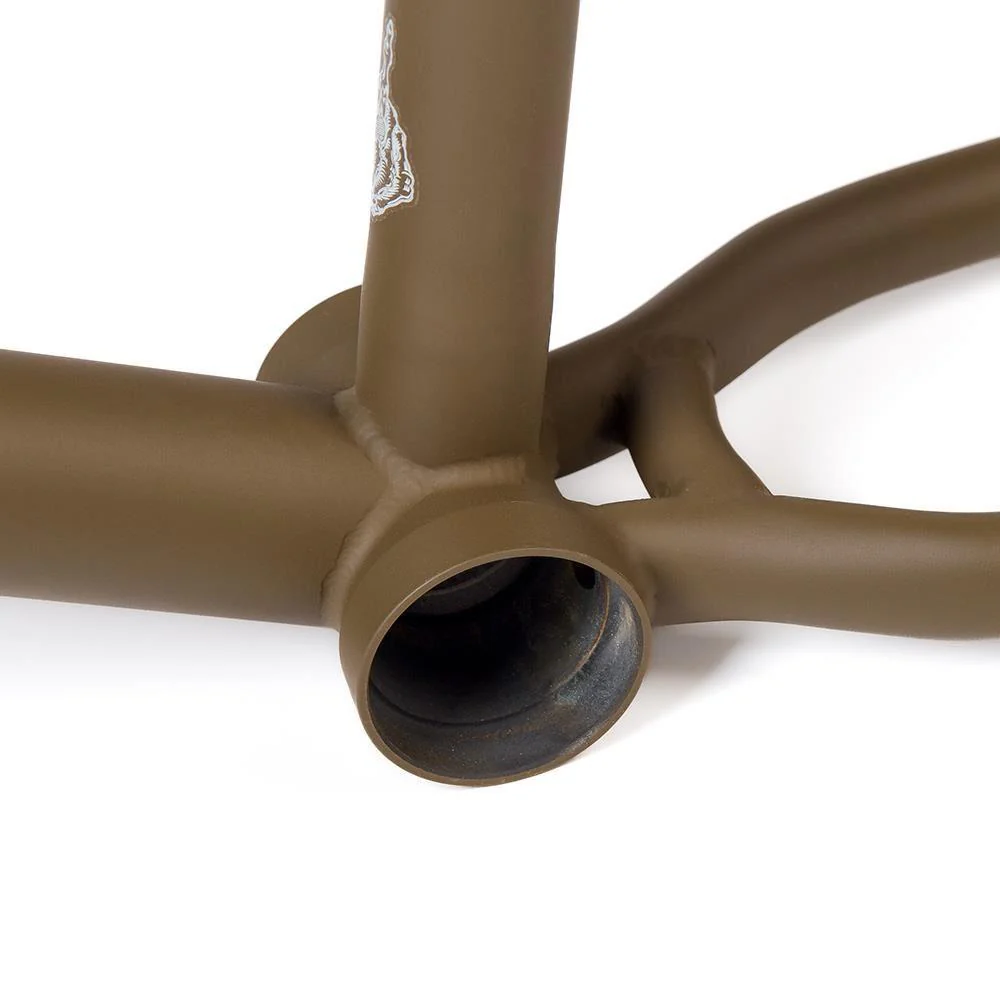

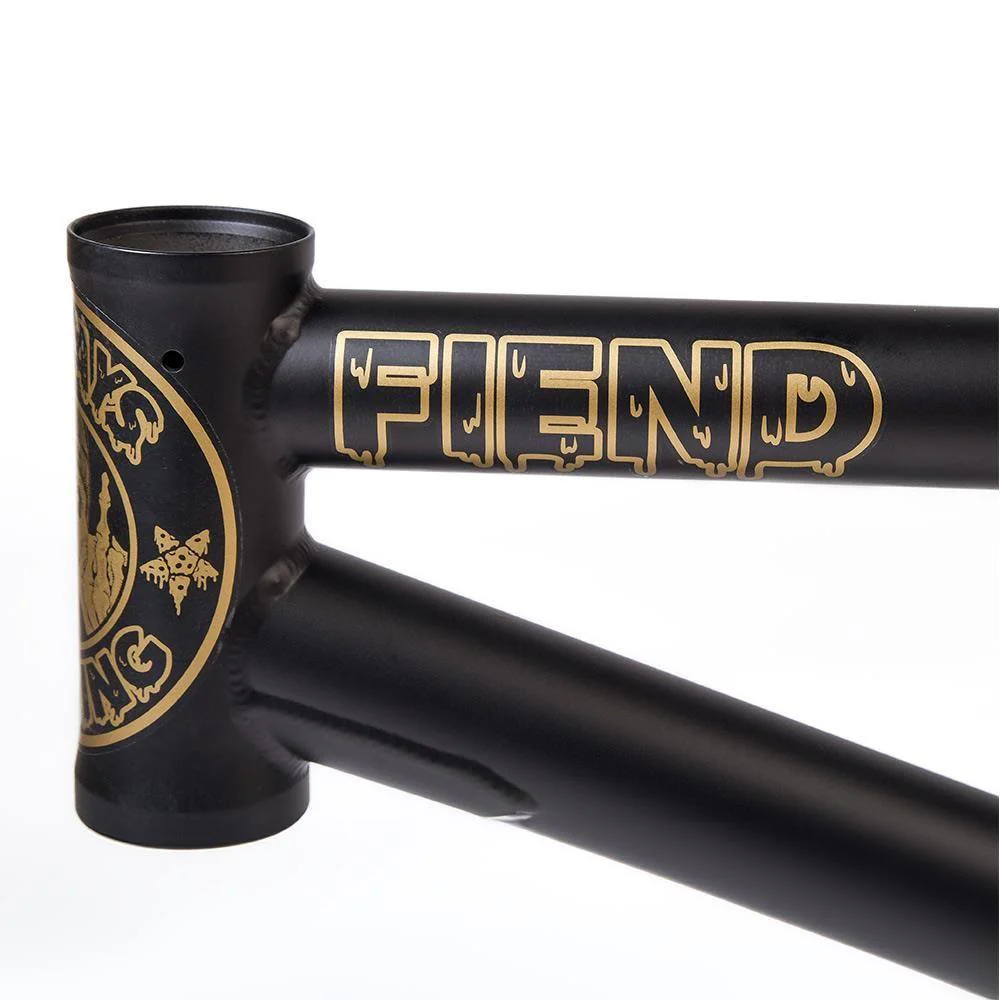

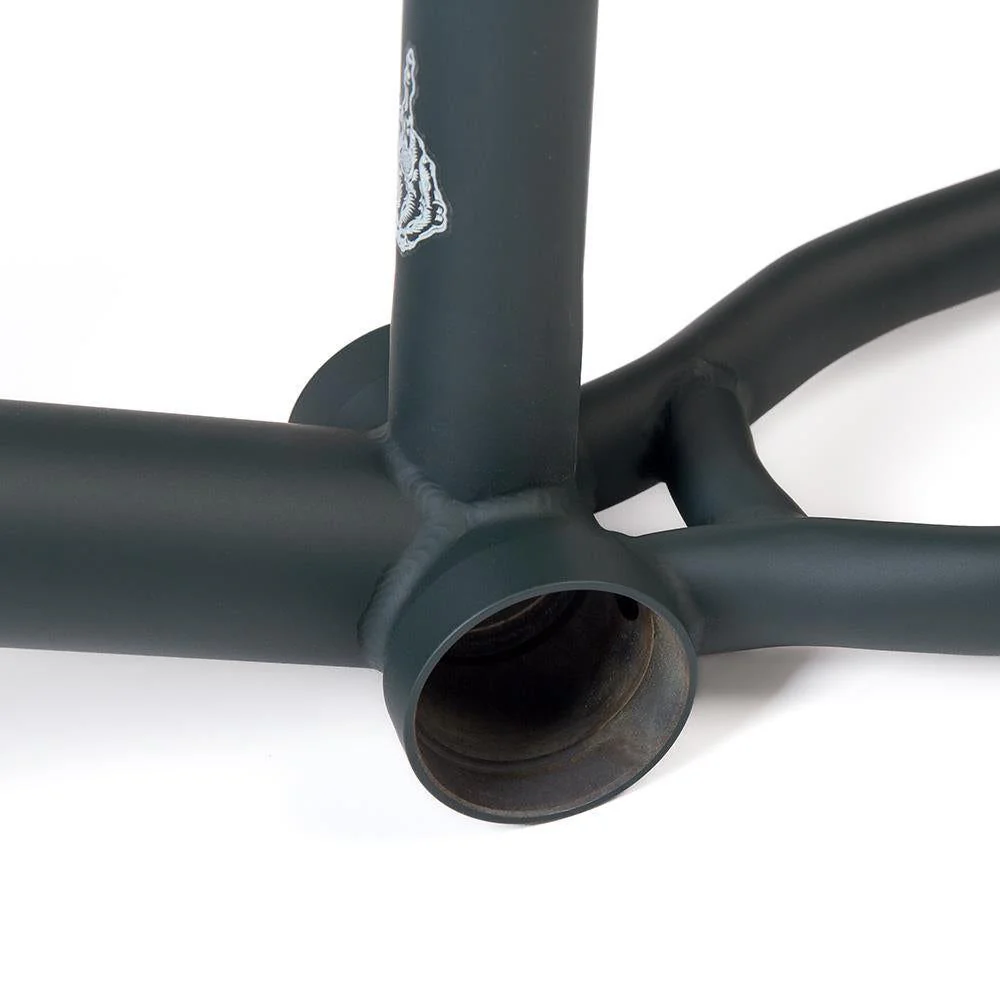

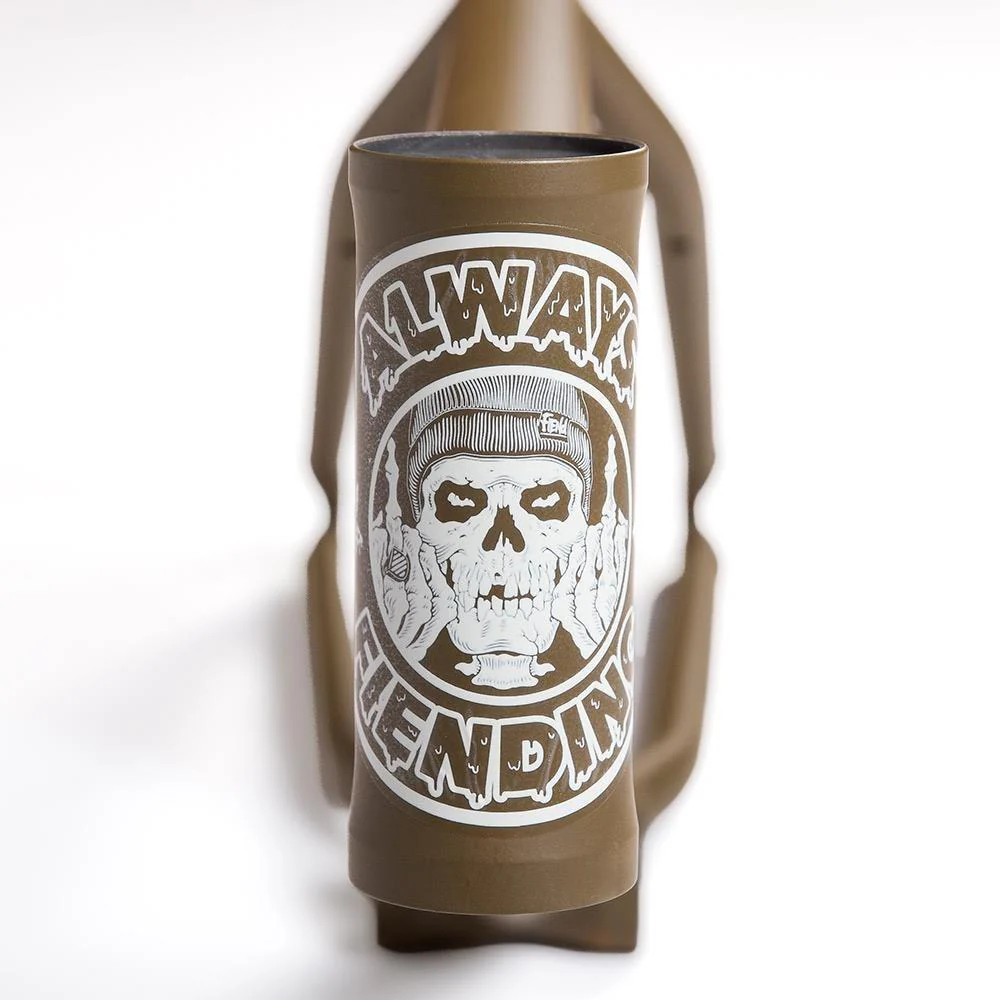

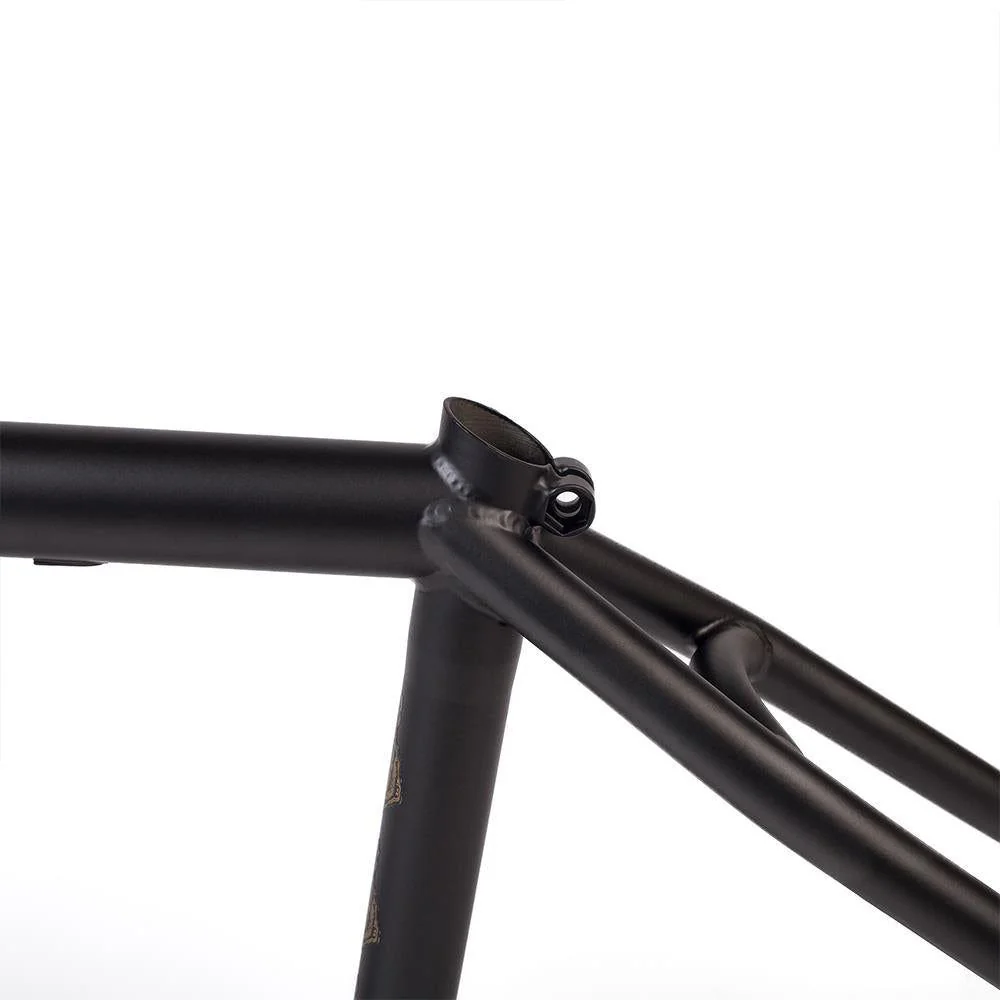

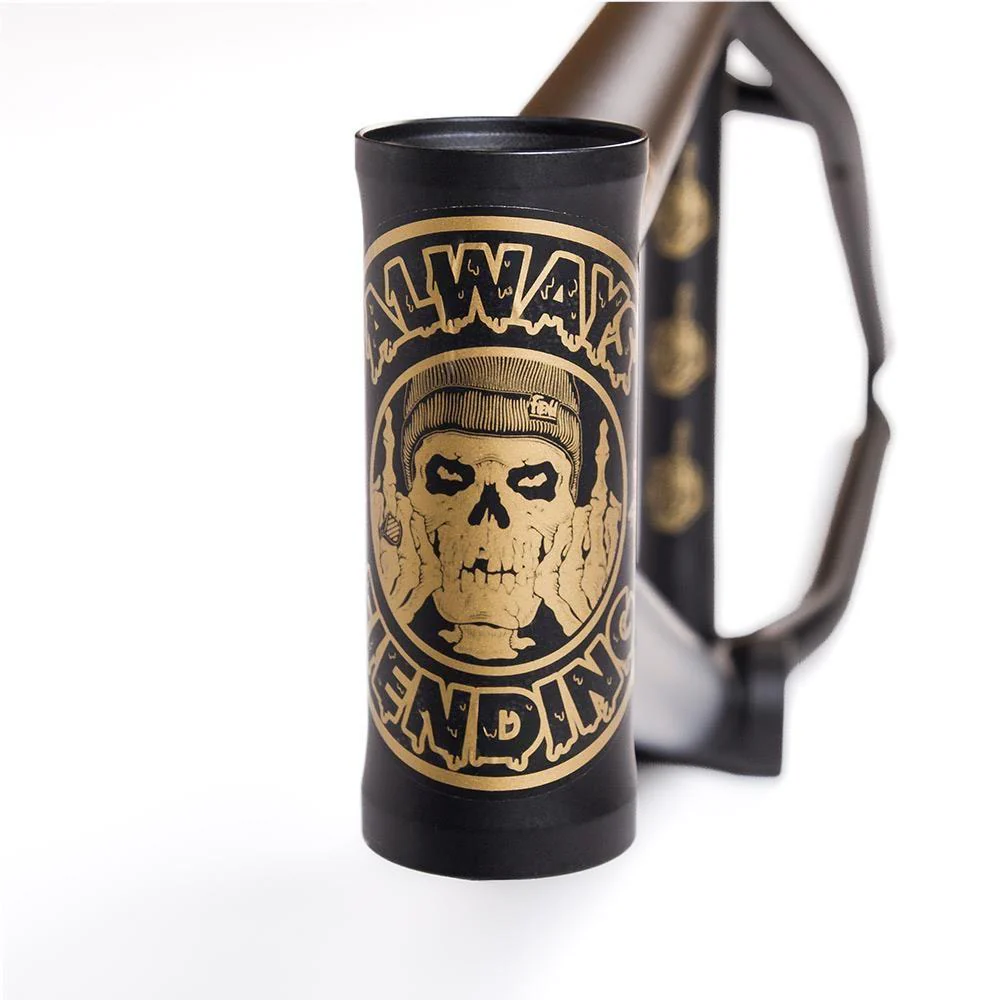

Features on the V3 include elevated chain stays and updated 8mm thick dropouts with integrated tensioners and a refined shape for the hang free grinds. The chain stay length has also been shortened to 12.75". Standard features include a heat treated Mid bottom bracket shell and Integrated head tube, internally gusseted double-butted down tube, externally butted seat tube with integrated post clamp.

The V3 includes a flush mount brake system with removable brake mounts and cable guides. Brake mount kit sold separately.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 75.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.75"
5. BB HEIGHT: TBC
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Intergrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: None
13. WEIGHT: 5lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• Gusseted tubing for added strength
• Strong butted tubing
• Removable brake hardware (Brake hardware not included)
