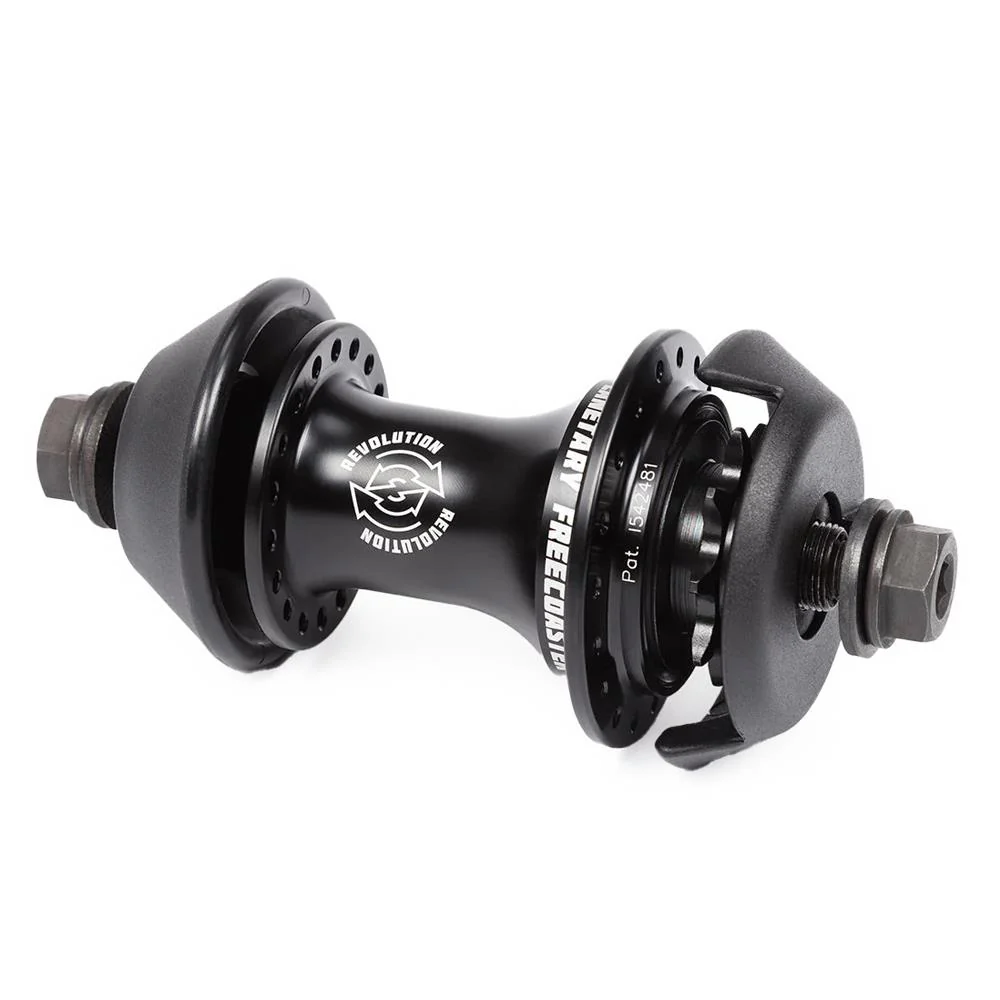

BSD Revolution V1.5 Female Hub RHD

The BSD Revolution Hub is a next-generation Planetary freecoaster, it's a hub that feels like a cassette hub, weighs the same as a cassette hub, has a pedal gap like a cassette hub and sounds like a cassette hub.

Sounds like a dream huh? Well now it’s a reality with the BSD Revolution v1.5 Hub with the new upgraded v1.5 spring loaded clutch. *This is the new female axle version of the hub* At the core of the system is the Planetary Clutch Mechanism, a compact, innovative clutch that replaces the traditional heavy cone-style clutch with a lightweight assembly.

This advanced mechanism enables immediate pedal engagement with virtually zero pedal gap, while eliminating unwanted engagement during fakie manoeuvres. Utilizing the Planetary clutch system that functions in a unique and revolutionary way, the BSD Revolution hub eliminates many of the problems associated with the heavyweight traditional cone style clutch design.

Features:

• 30% lighter than conventional freecoaster hubs.
• No gap when pedalling forward.
• Eradicates unwanted engagement on rollbacks.
• Feels and sounds like a cassette hub.
• No need for oversized hub bearings due to low axial load.
• Supertough hollow male 14mm chromo axle.
• Includes BSD-specific hubguards for optimal grind protection

Dimensions for spokes:

• Drive side Flange diameter 67mm
• Spoke hole pitch circle diameter 58mm
• Non drive side Flange diameter 54mm
• Spoke hole pitch circle diameter 45mm
• Center to flange 26mm
